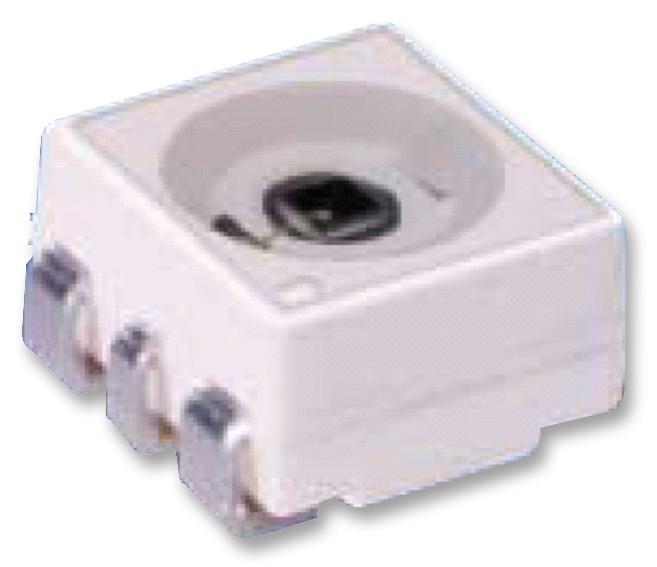

Lr G6SP-CBEA-1-1 LED, SMD, 0.65W, Red AMS OSRAM Group

AMS OSRAM GROUPUGS :LR G6SP-CBEA-1-1 Code de commande:1242031

Prix:
Prix ​​promotionnel€2,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4294 unité)

Documents et téléchargements

description

AMS OSRAM GROUP - LR G6SP-CBEA-1-1 - High Brightness LED, Advanced Power TOPLED Series, Red, 629 nm, 120 °, 19 lm, 200 mA

  • Product Range: Advanced Power TOPLED Series
  • LED Colour: Red
  • Wavelength Typ: 629nm
  • Viewing Angle: 120°
  • Luminous Flux @ Test: 19lm
  • Forward Current If Max: 200mA
  • Forward Current @ Test: 140mA
  • Forward Voltage @ Test: 2.1V
  • Luminous Intensity @ Test: 7.1cd
  • Power Dissipation Pd: 560mW
  • Automotive Qualification Standard: -
  • MSL: MSL 2 - 1 year
  • SVHC: No SVHC (17-Dec-2015)
  • Forward Current If: 200mA
  • Forward Voltage: 2.1V
  • Forward Voltage VF Max: 2.65V
  • LED Mounting: SMD
  • LED Type: Standard
  • Lens Colour: Clear
  • Lens Shape: Round with Flat Top
  • Luminous Intensity Max: 7100mcd
  • Luminous Intensity Min: 2800mcd
  • No. of Pins: 6Pins
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +110°C
  • Opto Case Style: SMD-6, J-Lead, Exposed Pad
  • Peak Pulse Current Ippm: 1A
  • Peak Wavelength: 632nm
  • Power @ Test: 0.3W
  • Voltage Vf Min: 1.9V
  • Voltage Vf Typ: 2.1V
