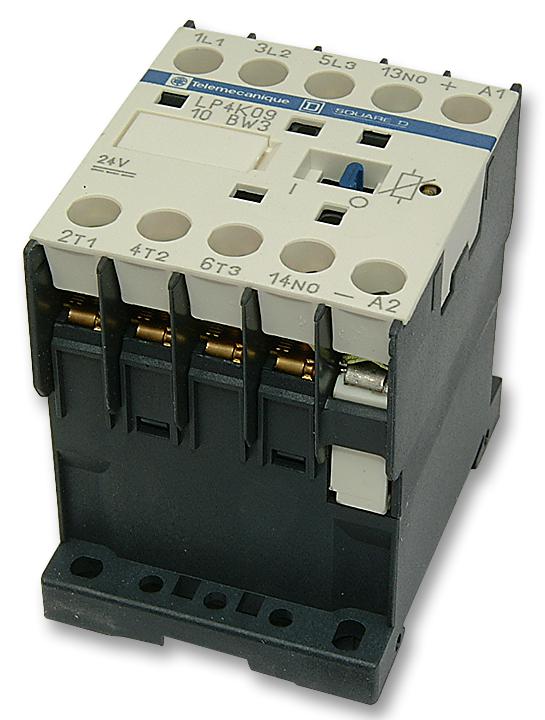

LP4K0910BW3 Contactor, 4.0KW, 24Vdc Schneider Electric

SCHNEIDER ELECTRICUGS :LP4K0910BW3 Code de commande:288378

Prix:
Prix ​​promotionnel€78,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

Documents et téléchargements

description

SCHNEIDER ELECTRIC - LP4K0910BW3 - Contactor, 9 A, DIN Rail, 690 VAC, 3NO / 1NO, 3 Pole, 4 kW

  • Load Current Inductive: 9A
  • Relay Mounting: DIN Rail
  • Operating Voltage: 690VAC
  • Contact Configuration: 3NO / 1NO
  • No. of Poles: 3 Pole
  • Switching Power AC3: 4kW
  • Switching Current AC1: 20A
  • Coil Voltage VAC Nom: -
  • Coil Voltage VDC Nom: 24V
  • Switching Power AC1: -
  • Load Current Resistive: 20A
  • Switching Current AC3: 9A
  • Product Range: TeSys K Series
  • SVHC: No SVHC (15-Jan-2018)
  • Aux Contact Current Max: 6A
  • Aux Contact Voltage AC Max: 660V
  • Coil Holding Power: 4.5VA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Pull-in Power: 30VA
  • Coil Type: DC
  • Contact Current DC Max: 9A
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 690V
  • Contact Voltage DC Max: 24V
  • DC Coil Power: 1.5W
  • External Depth: 57mm
  • External Length / Height: 58mm
  • External Width: 45mm
  • Main Contact Current AC1 Max: 20A
  • Main Contact Current AC3 Max: 9A
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -25°C
  • Relay Type: Contactor
  • Switch Current Max: 110A
  • Termination Type: Screw
