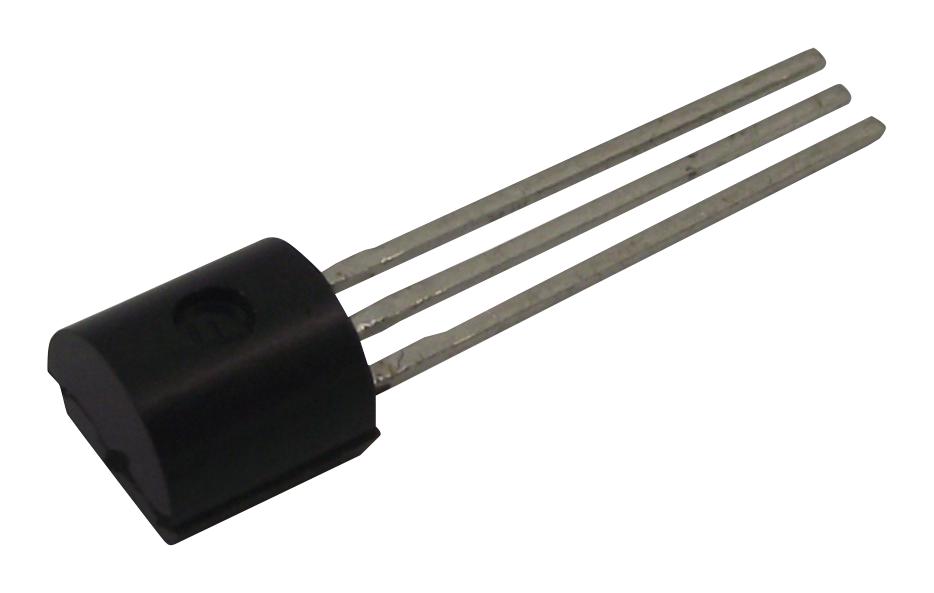

LP2950-50LPRE3 Ic, V Reg LDO +5.0V, TO-92-3, 2950 Texas Instruments

TEXAS INSTRUMENTSUGS :LP2950-50LPRE3 Code de commande:3007573

Prix:
Prix ​​promotionnel€1,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1472 unité)

description

TEXAS INSTRUMENTS - LP2950-50LPRE3 - Fixed LDO Voltage Regulator, 5.4V to 30V, 380mV Dropout, 5Vout, 100mAout, TO-92-3

  • Output Type: Fixed
  • Input Voltage Min: 5.4V
  • Input Voltage Max: 30V
  • Fixed Output Voltage Nom.: 5V
  • Adjustable Output Voltage Min: -
  • Adjustable Output Voltage Max: -
  • Output Current: 100mA
  • Dropout Voltage Vdo: 380mV
  • LDO Regulator Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: 5V 100mA LDO Voltage Regulators
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy %: 1.4%
  • Base Number: 2950
  • No. of Outputs: 1Outputs
  • Operating Temperature Range: -40°C to +125°C
  • Operating Voltage Tolerance +: 2%
  • Output Current Max: 0.1A
  • Output Voltage Nom.: 5V
  • Primary Input Voltage: 30V
  • Supply Voltage Min: 2V
  • Termination Type: Through Hole
