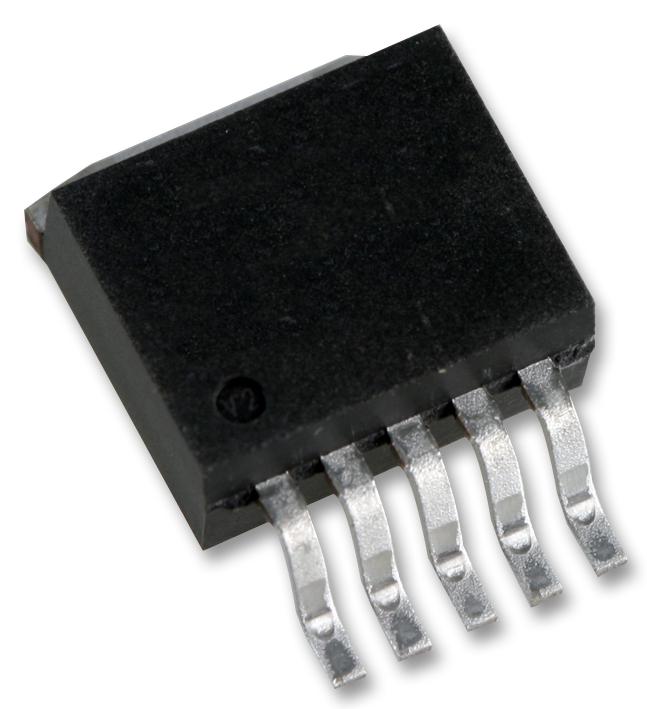

TEXAS INSTRUMENTS - LM2596S-ADJ/NOPB - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 4.5V-40Vin, 1.2V-37Vout, 3Aout, TO-263-5
- Topology: Buck (Step Down)
- Input Voltage Min: 4.5V
- Input Voltage Max: 40V
- No. of Outputs: 1Outputs
- DC / DC Converter IC Case: TO-263
- No. of Pins: 5Pins
- Output Current: 3A
- Output Voltage Min: 1.2V
- Output Voltage Max: 37V
- Switching Frequency: 150kHz
- Operating Temperature Max: 125°C
- Product Range: LM2596 series
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 4%
- Adjustable Output Voltage Min: 1.2V
- Frequency: 173kHz
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 37V
- Primary Input Voltage: 40V
- Supply Voltage Max: 45V
- Supply Voltage Min: 4.5V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Step Down (Buck)
