LM2576D2T-ADJG Switch Reg, Step Down, 3.0A, Adj ONSEMI

ONSEMIUGS :LM2576D2T-ADJG Code de commande:1460664

Prix:
Prix ​​promotionnel€5,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (542 unité)

Documents et téléchargements

description

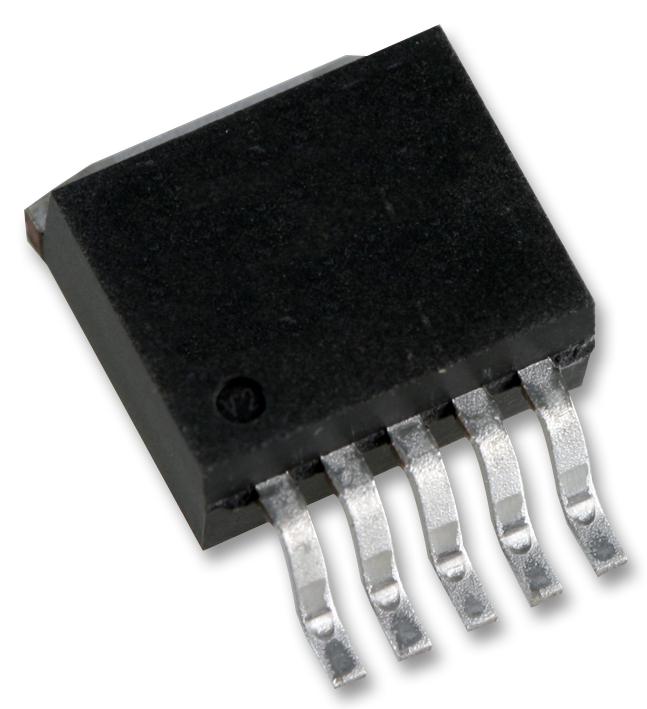

ONSEMI - LM2576D2T-ADJG - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 7V-40Vin, 1.23V-37Vout, 3Aout, TO-263-5

  • Topology: Buck (Step Down)
  • Input Voltage Min: 7V
  • Input Voltage Max: 40V
  • No. of Outputs: 1Outputs
  • DC / DC Converter IC Case: TO-263
  • No. of Pins: 5Pins
  • Output Current: 3A
  • Output Voltage Min: 1.23V
  • Output Voltage Max: 37V
  • Switching Frequency: 52kHz
  • Operating Temperature Max: 125°C
  • Product Range: LM2576 Series
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • MSL: -
  • SVHC: Lead (27-Jun-2018)
  • Accuracy %: 4%
  • Base Number: 2576
  • Frequency: 52kHz
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Output Current Max: 3A
  • Output Voltage: 37V
  • Primary Input Voltage: 40V
  • Supply Voltage Min: 8V
  • Termination Type: Surface Mount Device
  • Voltage Regulator Type: Step Down Switching Regulator
