LFXTAL035264 Crystal, CFPX-180, 16m, SMD 3.2x2.5 IQD Frequency Products

IQD FREQUENCY PRODUCTSUGS :LFXTAL035264 Code de commande:1674649

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6090 unité)

Documents et téléchargements

description

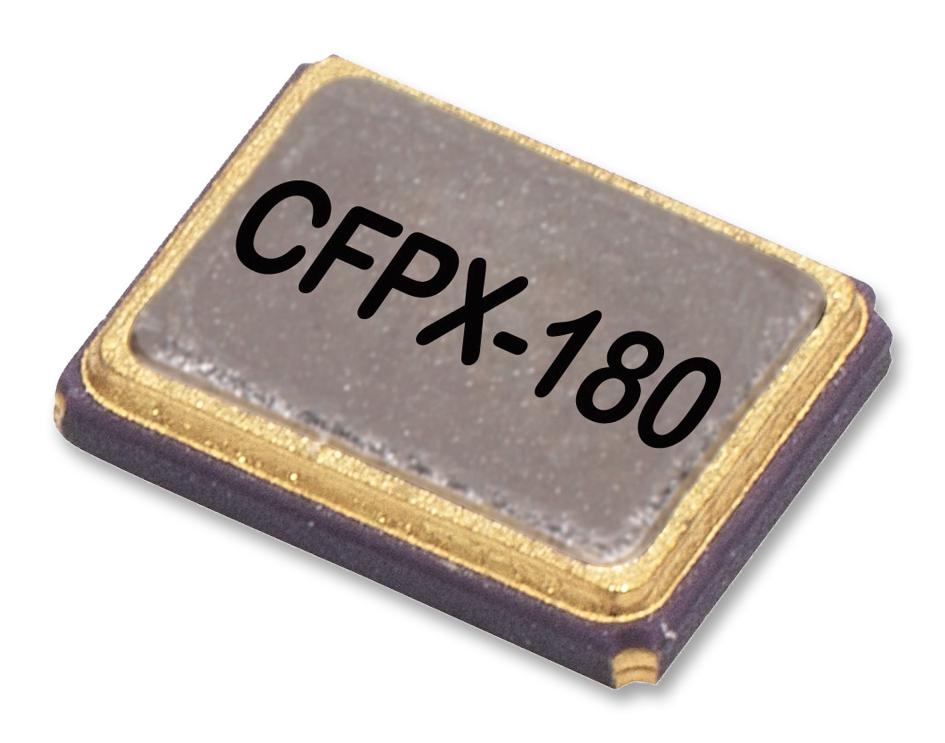

IQD FREQUENCY PRODUCTS - LFXTAL035264 - Crystal, 16 MHz, SMD, 3.2mm x 2.5mm, 50 ppm, 16 pF, 50 ppm, CFPX-180

  • Frequency Nom: 16MHz
  • Crystal Case: SMD, 3.2mm x 2.5mm
  • Frequency Stability + / -: 50ppm
  • Load Capacitance: 16pF
  • Frequency Tolerance + / -: 50ppm
  • Product Range: CFPX-180 Series
  • Operating Temperature Min: -10°C
  • Operating Temperature Max: 60°C
  • SVHC: No SVHC (15-Jan-2018)
  • Crystal Mounting Type: SMD
  • Frequency: 16MHz
  • Frequency Accuracy + @: 50ppm
  • Frequency Accuracy - @: 50ppm
  • Frequency Stability: ± 50ppm
  • No. of Pins: 4Pins
  • Operating Temperature Range: -10°C to +60°C
  • Output Frequency: 16MHz
  • Temperature Stability + @: 50ppm
  • Temperature Stability - @: 50ppm
