description

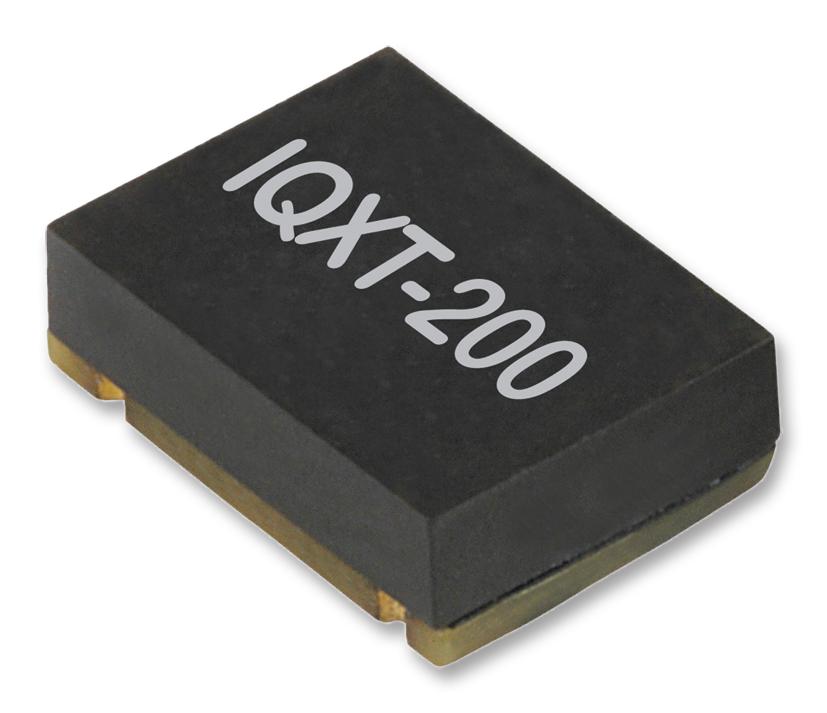

IQD FREQUENCY PRODUCTS - LFTCXO063714 - TCXO, Oscillator, 12.8 MHz, 0.28 ppm, SMD, 7mm x 5mm, Clipped Sinewave, 3.3 V, IQXT-200
- Frequency Nom: 12.8MHz
- Frequency Stability + / -: 0.28ppm
- Oscillator Case: SMD, 7mm x 5mm
- Oscillator Output Compatibility: Clipped Sinewave
- Supply Voltage Nom: 3.3V
- Product Range: IQXT-200 Series
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (15-Jan-2018)
- Frequency: 12.8MHz
- Frequency Stability: ± 0.28ppm
- Output Waveform: Clipped Sine Wave
- Supply Voltage Max: 3.47V
- Supply Voltage Min: 3.13V
