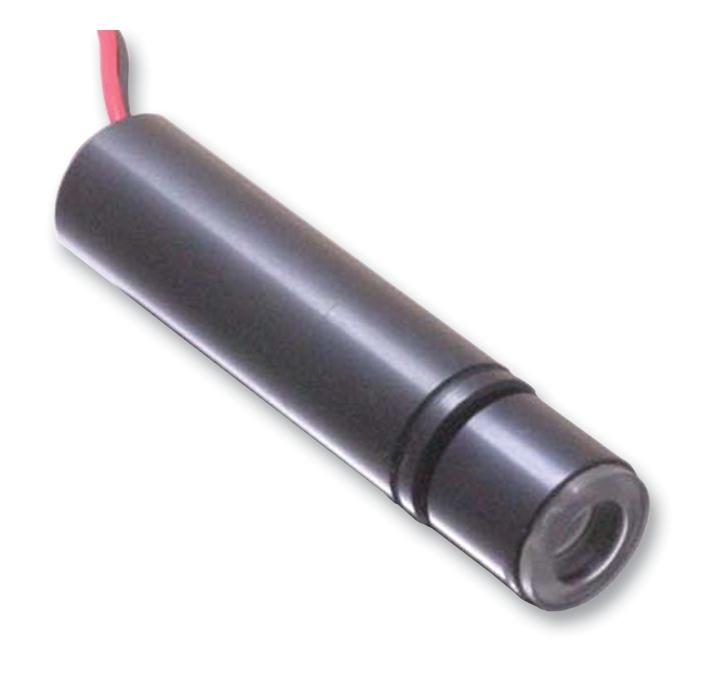

IMATRONIC - LDM115P/650/1 - Laser Module, 650 nm, 900 µW, 5 V, Plastic, 5mm x 5mm, 35 mA
- Wavelength Typ: 650nm
- Output Power: 900µW
- Voltage Rating: 5V
- Laser Lens: Plastic
- Laser Beam Size: 5mm x 5mm
- Supply Current: 35mA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Beam Divergence: 0.5mrad
- External Diameter: 11mm
- External Length / Height: 47mm
- External Width: 11mm
- Laser Class: Class 2
- Mean Time to Failure: 100000h
- Operating Temperature Max: 65°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +65°C
- Peak Wavelength: 650nm
- Range: 150mm
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Supply Voltage Max: 5V
- Supply Voltage Min: 3.5V
