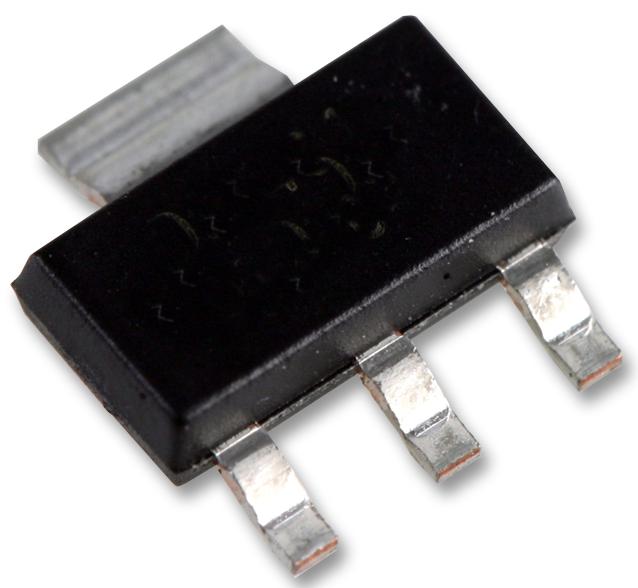

STMICROELECTRONICS - LD1117STR - LDO Voltage Regulator, Adjustable, 15V in, 1.1V drop, 1.25V to 15V/0.8A out, SOT-223-3
- Output Type: Adjustable
- Input Voltage Min: -
- Input Voltage Max: 15V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.25V
- Adjustable Output Voltage Max: 15V
- Output Current: 800mA
- Dropout Voltage Vdo: 1.1V
- LDO Regulator Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 125°C
- Product Range: LD1117 Series
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Accuracy %: 1%
- Base Number: 1117
- IC Generic Number: 1117
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +125°C
- Operating Voltage Tolerance +: 1%
- Output Current Max: 0.8A
- Output Voltage Adjustable Range: 1.25V to 15V
- Output Voltage Max: 15V
- Output Voltage Min: 1.25V
- Primary Input Voltage: 15V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Positive Adjustable
