LD1117S50CTR Ic, V Reg, LDO 5V, SMD STMICROELECTRONICS

STMICROELECTRONICSUGS :LD1117S50CTR Code de commande:1467780

Prix:
Prix ​​promotionnel€0,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (12553 unité)

Documents et téléchargements

description

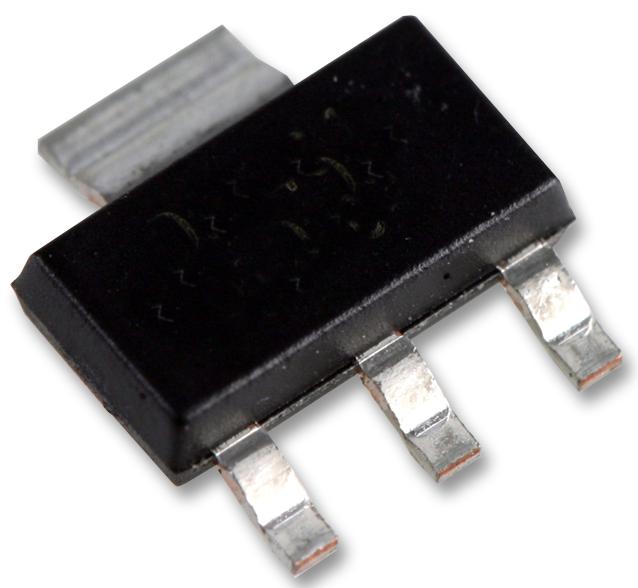

STMICROELECTRONICS - LD1117S50CTR - Fixed LDO Voltage Regulator, 6.5V to 15V, 1.1V Dropout, 5Vout, 800mAout, SOT-223-3

  • Output Type: Fixed
  • Input Voltage Min: 6.5V
  • Input Voltage Max: 15V
  • Fixed Output Voltage Nom.: 5V
  • Adjustable Output Voltage Min: -
  • Adjustable Output Voltage Max: -
  • Output Current: 800mA
  • Dropout Voltage Vdo: 1.1V
  • LDO Regulator Case Style: SOT-223
  • No. of Pins: 3Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: 5V 800mA LDO Voltage Regulators
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (17-Dec-2015)
  • Accuracy %: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage Nom.: 5V
  • Primary Input Voltage: 7V
  • Supply Voltage Max: 15V
  • Supply Voltage Min: 6.5V
  • Termination Type: Surface Mount Device
  • Voltage Regulator Type: 3-Terminal Fixed Positive
