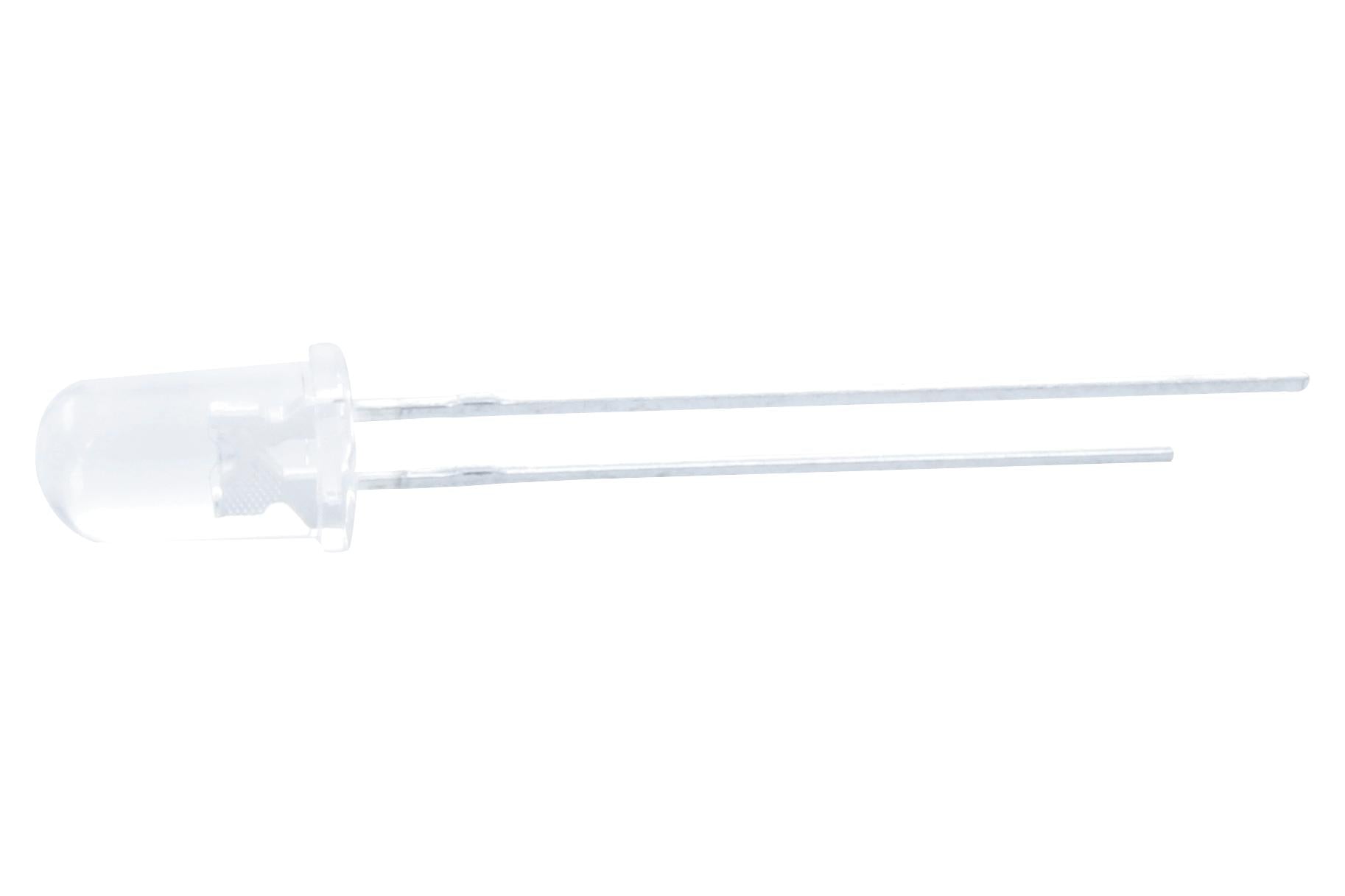

CREE LED - LC503FBL1-30Q-A3-00001 - LED, Blue, Through Hole, T-1 3/4 (5mm), 20 mA, 3.2 V, 480 nm
- LED Colour: Blue
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 3.2V
- Wavelength Typ: 480nm
- Luminous Intensity: 4.1cd
- Viewing Angle: 30°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- Bulb Size: T-1 3/4 (5mm)
- Dominant Wavelength: 470nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Lead Diameter: 0.5mm
- Lead Length: 25mm
- Lead Spacing: 2.54mm
- Lens Diameter: 5mm
- Lens Length: 8.8mm
- Luminous Intensity Typ: 4100mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 95°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +95°C
