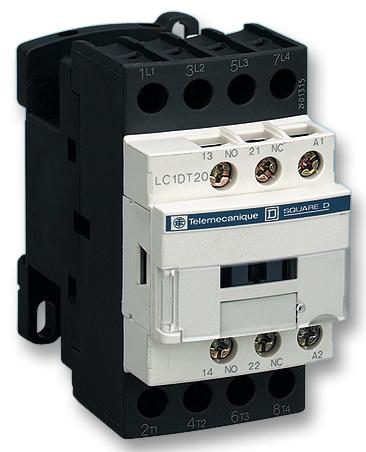

SCHNEIDER ELECTRIC - LC1DT25F7 - Contactor, LC1D, DIN Rail, 110 VAC, 4PNO, 4 Pole
- Load Current Inductive: -
- Relay Mounting: DIN Rail
- Operating Voltage: 110VAC
- Contact Configuration: 4PNO
- No. of Poles: 4 Pole
- Switching Power AC3: -
- Switching Current AC1: 25A
- Coil Voltage VAC Nom: 110V
- Coil Voltage VDC Nom: 48V
- Switching Power AC1: -
- Load Current Resistive: 25A
- Switching Current AC3: -
- Product Range: TeSys D Series
- SVHC: No SVHC (15-Jan-2018)
- Coil Frequency Max: 60Hz
- Coil Holding Power: 7.5VA
- Coil Operating Frequency Min: 50Hz
- Coil Operating Voltage: 110V
- Coil Pull-in Power: 70VA
- Contact Current AC Max: 25A
- Contact Voltage AC Max: 110V
- External Depth: 90mm
- External Length / Height: 85mm
- External Width: 45mm
- Main Contact Current AC1 Max: 25A
- Relay Type: Contactor
