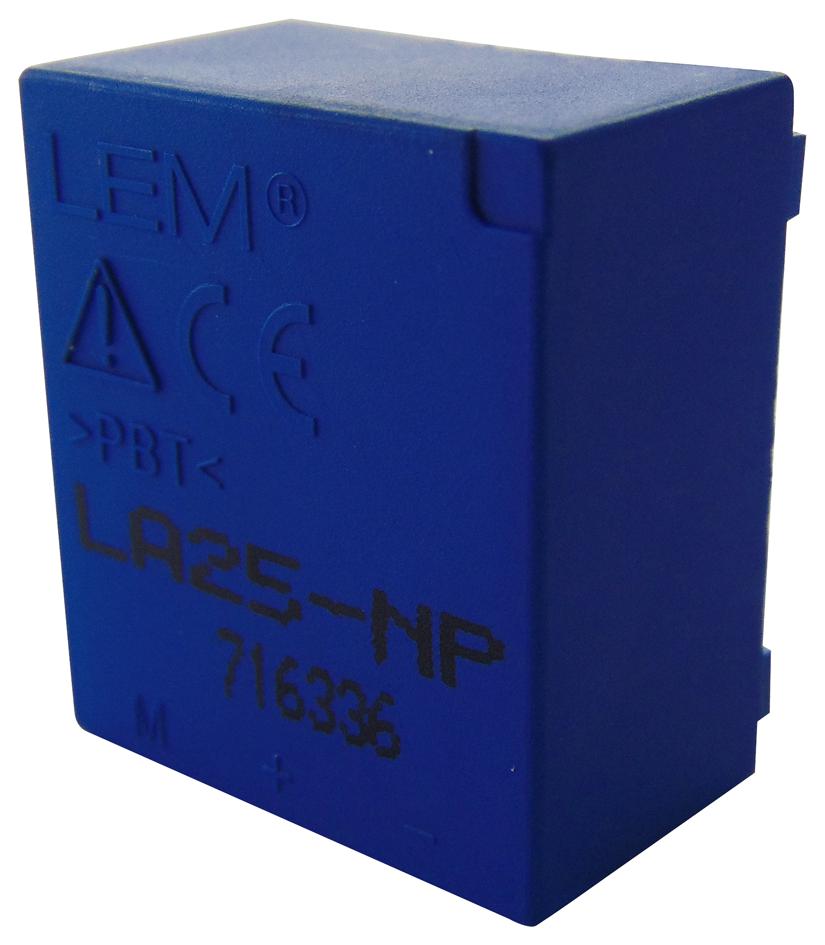

La 25-NP Current Transducer, 25A, Pcb Lem

LEMUGS :LA 25-NP Code de commande:1617404

Prix:
Prix ​​promotionnel€41,43

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1062 unité)

Documents et téléchargements

description

LEM - LA 25-NP - Current Transducer, LA Series, 25A, -36A to 36A, 0.5 %, Closed Loop Output, 14.25 Vdc to 15.75 Vdc

  • Sensor Output: Current
  • Supply Voltage DC Min: 14.25V
  • Supply Voltage DC Max: 15.75V
  • Current Measuring Range DC: -36A to 36A
  • Current Measuring Range AC: -36A to 36A
  • Response Time: 1µs
  • Accuracy %: 0.5%
  • Product Range: LA 25-200 -P Series
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: 0.5%
  • Current Consumption: 10mA
  • Current Rating: 25A
  • External Depth: 29.2mm
  • External Length / Height: 15.1mm
  • External Width: 26mm
  • Flammability Rating: UL 94-V0
  • Frequency Max: 150kHz
  • Linearity: 0.2%
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Current: 25mA
