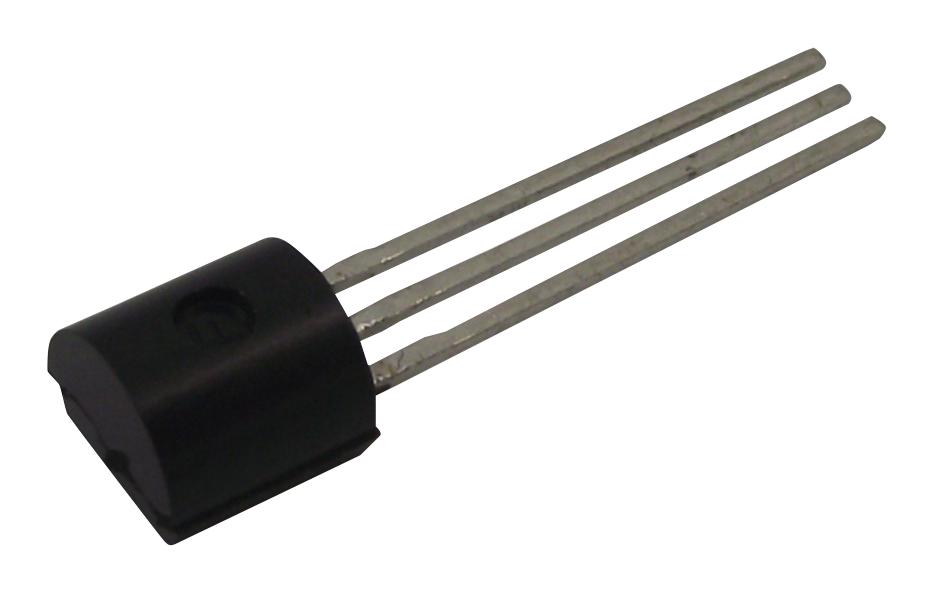

L78L06ABZ Ic, V Reg, 6V STMICROELECTRONICS

STMICROELECTRONICSUGS :L78L06ABZ Code de commande:1467764

Prix:
Prix ​​promotionnel€0,98

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2610 unité)

Documents et téléchargements

description

STMICROELECTRONICS - L78L06ABZ - Linear Voltage Regulator, 7806, Fixed, 3-Terminal, Positive, 12V To 30V In, 6V And 0.1A Out, TO-92-3

  • Fixed Output Voltage Nom.: 6V
  • Adjustable Output Voltage Min: -
  • Adjustable Output Voltage Max: -
  • Input Voltage Min: 12V
  • Input Voltage Max: 30V
  • Product Range: 7806 Voltage Regulators
  • Output Current: 100mA
  • Output Type: Fixed
  • Linear Regulator Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • No. of Outputs: 1Outputs
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage Max: 6V
  • Output Voltage Nom.: 6V
  • Primary Input Voltage: 12V
  • Supply Voltage Max: 30V
  • Supply Voltage Min: 8.5V
  • Termination Type: Through Hole
  • Voltage Regulator Type: 3-Terminal Fixed Positive
