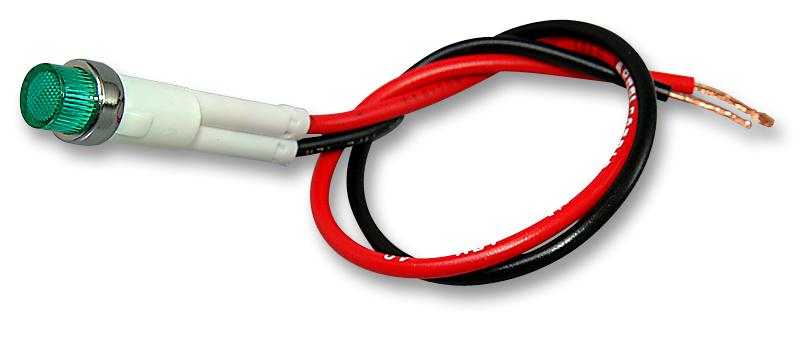

L295100LAF LED Indicator, Green Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)UGS :L295100LAF Code de commande:9429000

Prix:
Prix ​​promotionnel€13,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (72 unité)

Documents et téléchargements

description

ARCOLECTRIC (BULGIN LIMITED) - L295100LAF - LED Panel Mount Indicator, Green, 24 VDC, 8 mm, 20 mA, Not Rated

  • LED Colour: Green
  • Operating Voltage: 24VDC
  • Mounting Hole Dia: 8mm
  • Forward Current If: 20mA
  • Luminous Intensity: -
  • IP / NEMA Rating: Not Rated
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, DEMKO, OVE, UL
  • Bezel Diameter: 9.8mm
  • Bulb Size: 3mm
  • External Diameter: 9.8mm
  • External Length / Height: 41mm
  • Fixing Hole Diameter: 8mm
  • Forward Current If Max: 20mA
  • Forward Current If(AV): 20mA
  • Forward Voltage: 2.2V
  • Forward Voltage VF Max: 28V
  • LED / Lamp Size: 3mm
  • Lead Length: 200mm
  • Lens Length: 4.8mm
  • Lens/Filter Width: 7.5mm
  • Luminous Intensity Typ: 1mcd
  • Operating Temperature Max: 85°C
  • PIV Max: 5V
  • Panel Thickness Max: 1.6mm
  • Voltage Category: DC
  • Voltage Rating V DC: 24V
  • Voltage Vf Min: 24V
  • Voltage Vf Typ: 28V
