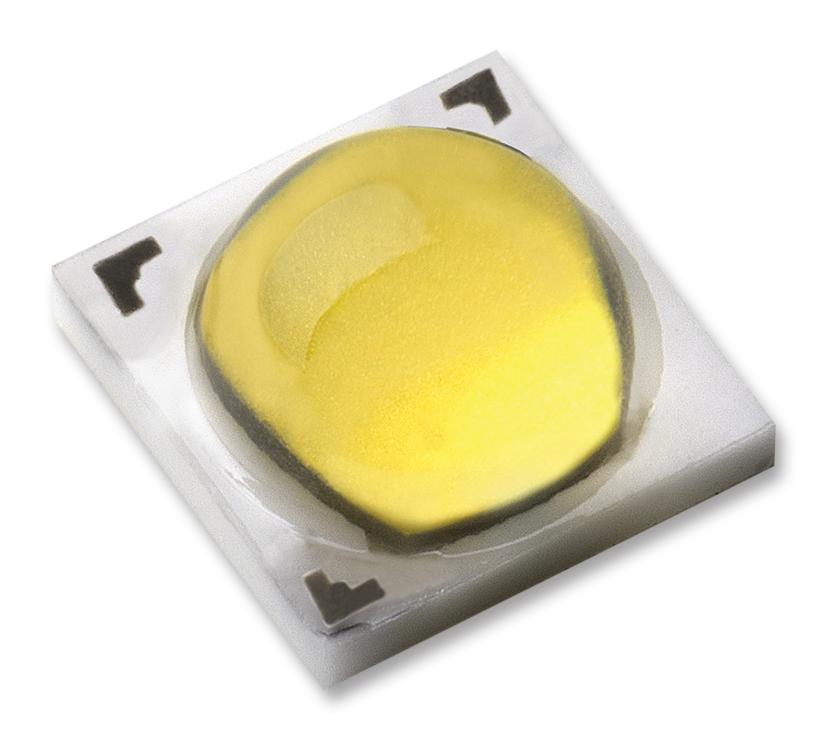

L1T2-5770000000000 LED, High Power, 5700K, 70CRI, 275LM LUMILEDS

LUMILEDSUGS :L1T2-5770000000000 Code de commande:2364884

Prix:
Prix ​​promotionnel€4,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

LUMILEDS - L1T2-5770000000000 - LED, Cool White, 70 CRI Rating, 140 lm/W, 369 lm, 1 A, 120 °, 5700 K, 1515 Package, Dome

  • COB Colour: Cool White
  • Color Rendering Index Max: 70
  • Power Rating: -
  • Luminous Flux @ Test: 369lm
  • Forward Current @ Test: 1A
  • Viewing Angle: 120°
  • Forward Voltage VF Typ: 2.86V
  • Nominal CCT (K): 5700 K
  • COB Length: 3.7mm
  • COB Width: 3.7mm
  • Opto Case Style: 1515
  • Lumens / Watt @ Current Test: 140lm/W
  • Light Emitting Surface: -
  • Lens Type: -
  • Lens Shape: Dome
  • Height: 2.02mm
  • Product Range: LUXEON TX Series
  • SVHC: No SVHC (07-Jul-2017)
  • CCT: 5700K
  • Forward Current If Max: 1.2A
  • Forward Voltage @ Test: 2.86V
  • LED Colour: White
  • LED Mounting: SMD
  • No. of Pins: 3Pins
  • Operating Temperature Max: 135°C
  • Operating Temperature Min: -40°C
  • Power @ Test: 2.9W
