KSU213WLFG Detection Switch, Miniature, 3WAY C&K Components

C&K COMPONENTSUGS :KSU213WLFG Code de commande:1201432

Prix:
Prix ​​promotionnel€2,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3358 unité)

Documents et téléchargements

description

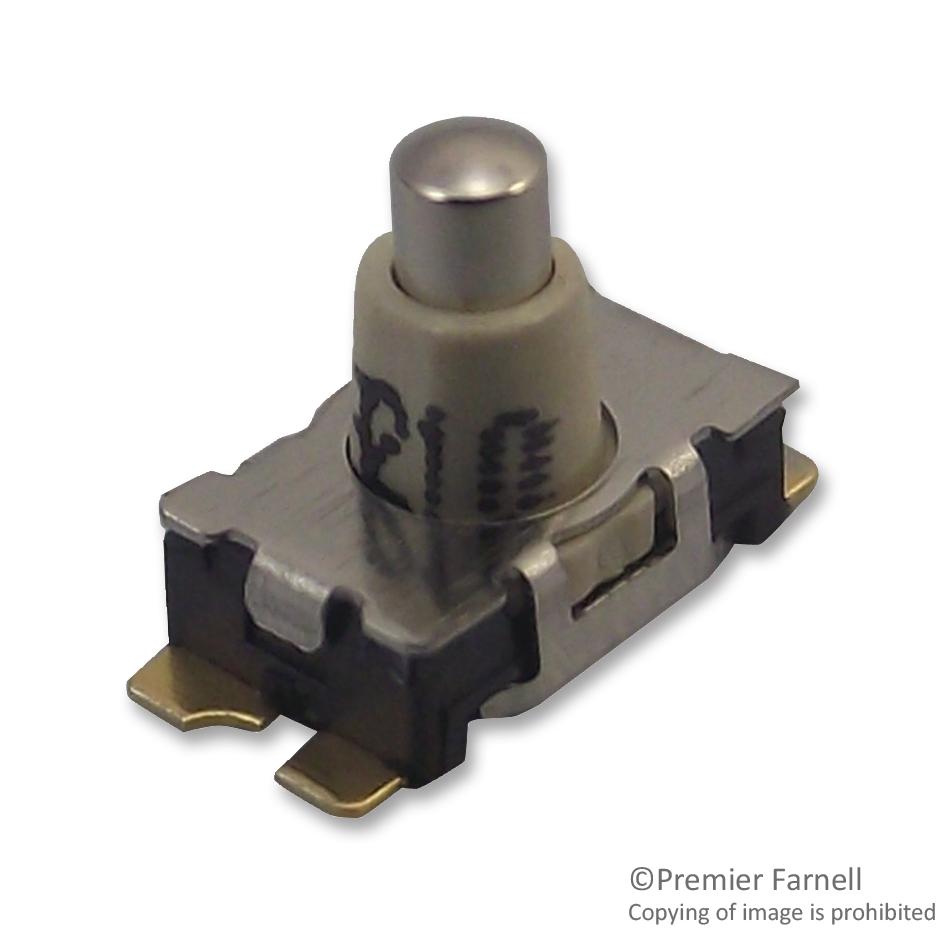

C&K COMPONENTS - KSU213WLFG - Detector Switch, KSU, SPST-NO, Solder, 10 mA, 32 V, 5.1 mm

  • Product Range: KSU Series
  • Contact Configuration: SPST-NO
  • Switch Terminals: Solder
  • Contact Current Max: 10mA
  • Contact Voltage DC Nom: 32V
  • External Height: 5.1mm
  • External Width: 7mm
  • External Depth: 3.1mm
  • SVHC: Lead (15-Jan-2019)
  • Actuator Type: Plunger
  • Contact Current DC Max: 10mA
  • Contact Current Min: 1mA
  • Contact Current Rating: 10mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 50V
  • DC Power: 0.5VA
  • Dielectric Strength VDC: 250V
  • External Length / Height: 5.1mm
  • Insulation Resistance: 1000Mohm
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.1N
  • Operating Force Max: 20N
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Switch Operation: Off-(On)
  • Thermal Current Rating: 10mA
