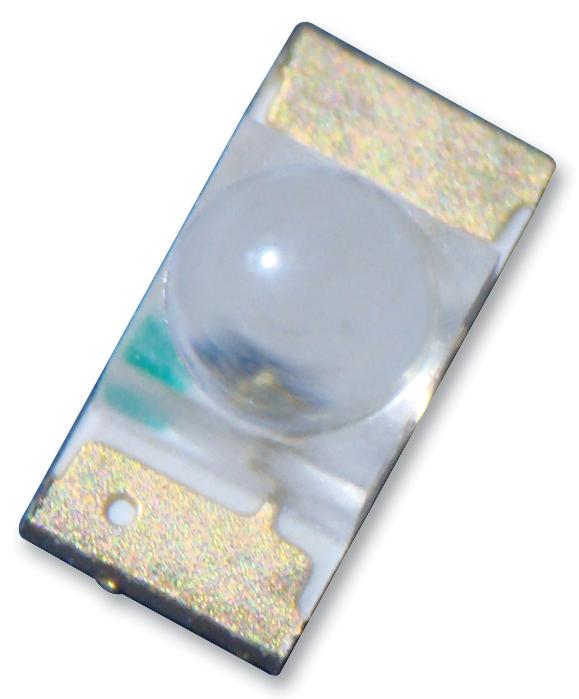

KPTD-3216MGC LED, SMD, 1206, Lens, Green KINGBRIGHT

KINGBRIGHTUGS :KPTD-3216MGC Code de commande:8530068

Prix:
Prix ​​promotionnel€0,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1307 unité)

Documents et téléchargements

description

KINGBRIGHT - KPTD-3216MGC - LED, Low Power, Green, SMD, 1206 (3216 Metric), 20 mA, 2.1 V, 568 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 1206 (3216 Metric)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 568nm
  • Luminous Intensity: 350mcd
  • Viewing Angle: 50°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Dominant Wavelength: 568nm
  • External Depth: 1.6mm
  • External Length / Height: 1.8mm
  • External Width: 3.2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 1.6mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 110mcd
  • Luminous Intensity Typ: 350mcd
  • Material: InGaAIP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 574nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2.1V
