KPHCM-2012SGC-T LED, 0805, Green, 25MCD, 568NM KINGBRIGHT

KINGBRIGHTUGS :KPHCM-2012SGC-T Code de commande:1686074

Prix:
Prix ​​promotionnel€0,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (27722 unité)

Documents et téléchargements

description

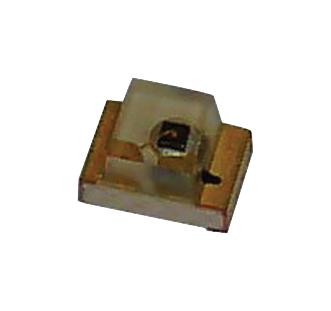

KINGBRIGHT - KPHCM-2012SGC-T - LED, Low Power, Green, SMD, 0805 [2012 Metric], 20 mA, 2.2 V, 568 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 0805
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 568nm
  • Luminous Intensity: 25mcd
  • Viewing Angle: 110°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Dominant Wavelength: 568nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 2mm x 1.25mm
  • LED Type: Standard
  • Luminous Intensity Typ: 25mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
