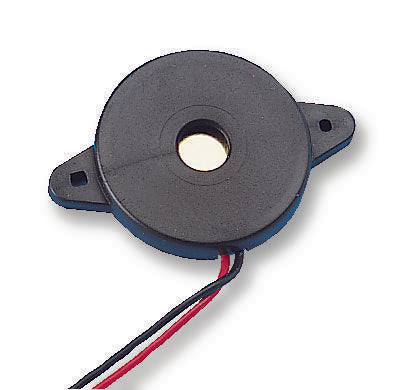

KINGSTATE - KPEG827 - Transducer, Piezo, Audio Indicator, 50 V, 11 mA, 97 dB
- Transducer Function: Audio Indicator
- Tones: -
- Supply Voltage Min: -
- Supply Voltage Max: 50V
- Operating Current Max: 11mA
- Sound Level SPL: 97dB
- Sound Level Distance: 10cm
- Resonant Frequency: 4.5kHz
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Capacitance: 0.018µF
- Capacitance Max: 23.4nF
- Colour: Black
- Current Consumption: 11mA
- Current Max: 11mA
- Current Rating: 11mA
- Device Type: Piezo Transducer
- External Diameter: 30mm
- External Height: 5.1mm
- External Length / Height: 5.1mm
- Fixing Centres: 35mm
- Height: 5.1mm
- Lead Length: 110mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Supply Voltage: 50V
- Supply Voltage DC Max: 50V
- Weight: 4.7g
