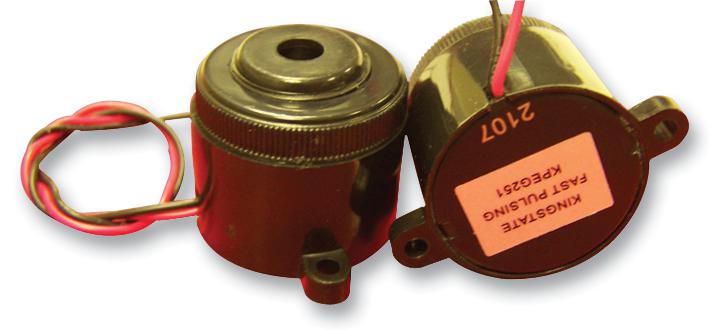

KPEG251 Piezo Buzzer, Wire Type KINGSTATE

KINGSTATEUGS :KPEG251 Code de commande:1502699

Prix:
Prix ​​promotionnel€8,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (792 unité)

Documents et téléchargements

description

KINGSTATE - KPEG251 - Transducer, Piezo, Buzzer, Buzzer, Fast Pulse, 4 V, 28 V, 5 mA, 82 dB

  • Transducer Function: Buzzer
  • Tones: Fast Pulse
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 28V
  • Operating Current Max: 5mA
  • Sound Level SPL: 82dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 3.5kHz
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Current Consumption: 5mA
  • Current Rating: 5mA
  • External Diameter: 28mm
  • External Height: 25.4mm
  • External Length / Height: 25.4mm
  • Fixing Centres: 33.5mm
  • Frequency: 3.5kHz
  • Height: 25.4mm
  • Lead Length: 150mm
  • Material: ABS UL-94 1/16" HB HIGH HEAT (BLACK)
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pulsing Frequency: 3Hz
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 4V
  • Supply Voltage V DC: 12V
  • Weight: 10.1g
