KPEG-353 Piezo Buzzer KINGSTATE

KINGSTATEUGS :KPEG-353 Code de commande:1193669

Prix:
Prix ​​promotionnel€9,98

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1748 unité)

Documents et téléchargements

description

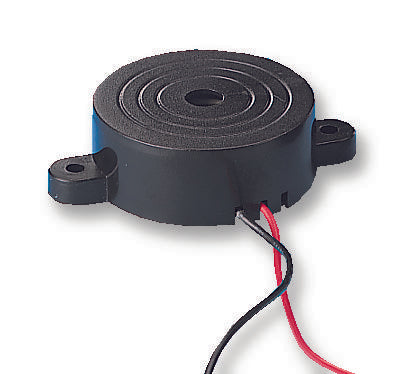

KINGSTATE - KPEG-353 - Transducer, Piezo, Buzzer, Buzzer, Slow Pulse, 3 V, 28 V, 8 mA, 81 dB

  • Transducer Function: Buzzer
  • Tones: Slow Pulse
  • Supply Voltage Min: 3V
  • Supply Voltage Max: 28V
  • Operating Current Max: 8mA
  • Sound Level SPL: 81dB
  • Sound Level Distance: 30cm
  • Resonant Frequency: 2.8kHz
  • Product Range: -
  • SVHC: No SVHC (20-Jun-2016)
  • Colour: Black
  • Current Consumption: 8mA
  • Current Rating: 8mA
  • External Diameter: 41.8mm
  • External Height: 16mm
  • External Length / Height: 16mm
  • Fixing Centres: 50mm
  • Frequency: 2.8kHz
  • Lead Length: 140mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Supply Voltage: 12V
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 3V
  • Weight: 14.6g
