description

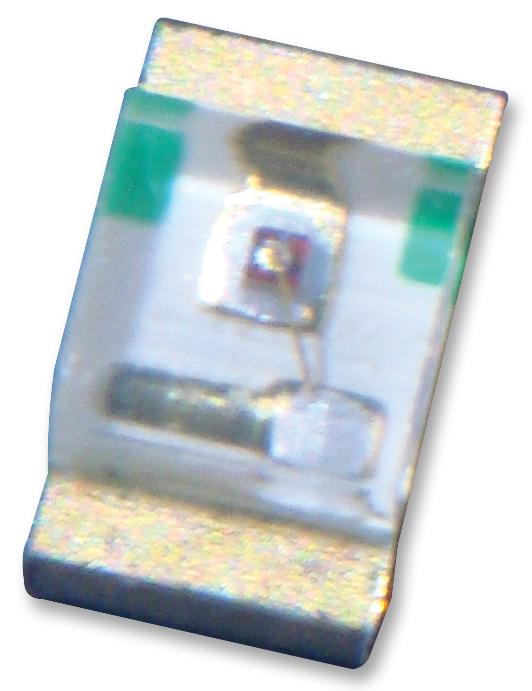

KINGBRIGHT - KP-2012YC - LED, Low Power, Yellow, SMD, 0805 [2012 Metric], 20 mA, 2.1 V, 588 nm
- LED Colour: Yellow
- LED Mounting: SMD
- LED Case Size: 0805
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 588nm
- Luminous Intensity: 8mcd
- Viewing Angle: 120°
- Lens Shape: Rectangular
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Current If Luminous Intensity: 20mA
- Dominant Wavelength: 590nm
- External Depth: 1.25mm
- External Length / Height: 1.1mm
- External Width: 2mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.5V
- LED / Lamp Size: 1.2mm x 0.8mm
- LED Type: Standard
- Luminous Intensity @ If Min: 2.6mcd
- Luminous Intensity Typ: 15mcd
- Material: GaAsP/GaP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Forward Current: 20mA
- Peak Wavelength: 585nm
- Voltage Vf Typ: 2V
