description

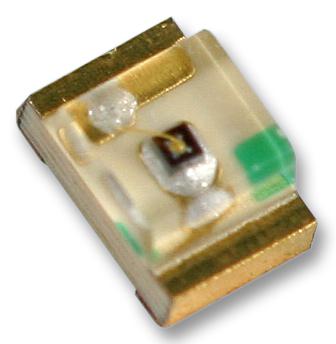

KINGBRIGHT - KP-2012SYC - LED, Low Power, Yellow, SMD, 0805 [2012 Metric], 20 mA, 2 V, 590 nm
- LED Colour: Yellow
- LED Mounting: SMD
- LED Case Size: 0805
- Forward Current If: 20mA
- Forward Voltage: 2V
- Wavelength Typ: 590nm
- Luminous Intensity: 60mcd
- Viewing Angle: 120°
- Lens Shape: Rectangular
- Product Range: SMD Yellow LED
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Dominant Wavelength: 590nm
- External Depth: 1.25mm
- External Length / Height: 1.1mm
- External Width: 2mm
- Forward Current If Max: 30mA
- Forward Voltage VF Max: 2.4V
- LED / Lamp Size: 1.3mm x 1.25mm
- LED Type: Standard
- Luminous Intensity @ If Min: 40mcd
- Luminous Intensity Typ: 60mcd
- Material: InGaAIP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Wavelength: 590nm
- Reverse Leakage Current Max: 10µA
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Typ: 2V
