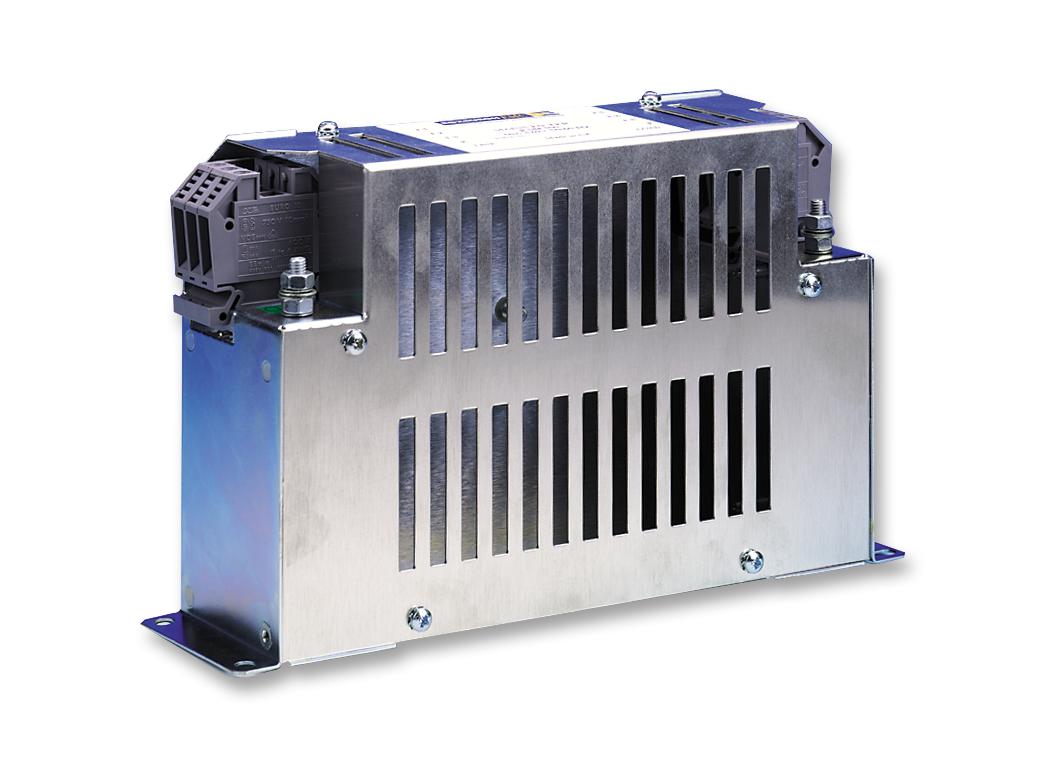

ROXBURGH EMC - KMF3100 - Power Line Filter, Installation, General Purpose, 520 VAC, 100 A, Three Phase, 1 Stage
- Current Rating: 100A
- Voltage Rating: 520V
- Filter Type: EMI, RFI
- Filter Terminals: Screw
- Inductance Min: 3.1µH
- Capacitance: 4.4µF
- Leakage Current Max: 198mA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 319mm
- External Length / Height: 190mm
- External Width: 93mm
- Leakage Current: 198mA
- No. of Phases: Three Phase
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
- Standard: UL1283,EN133200,EN55011A,EN55022B
- Voltage Rating VAC: 520V
- Weight: 4.5kg
