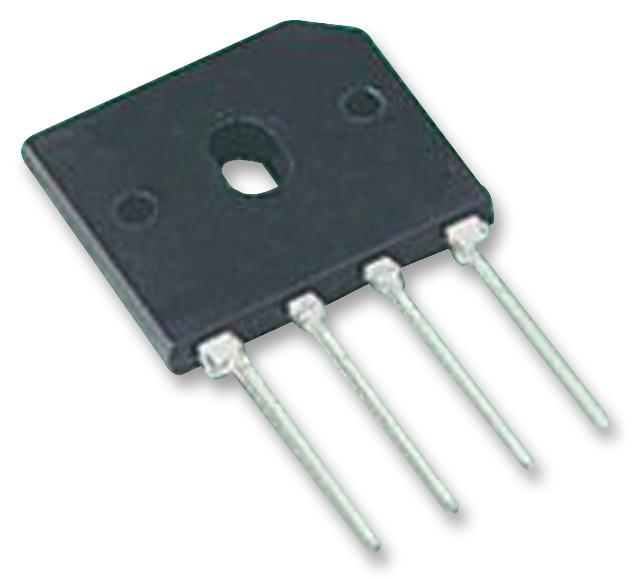

KBU403G T0 Diode, Bridge RECT, 1-PH, 200V, 4A, Sip Taiwan Semiconductor

TAIWAN SEMICONDUCTORUGS :KBU403G Code de commande:2677270

Prix:
Prix ​​promotionnel€2,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (53 unité)

Documents et téléchargements

description

TAIWAN SEMICONDUCTOR - KBU403G - Bridge Rectifier, Single Phase, 200 V, 4 A, SIP, 4 Pins, 1.1 V

  • No. of Phases: Single Phase
  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 4A
  • Bridge Rectifier Case Style: SIP
  • Forward Voltage VF Max: 1.1V
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Ambient Temperature Ta: 25°C
  • Current Ir Max: 5µA
  • Diode Mounting Type: Through Hole
  • Diode Type: Bridge Rectifier
  • External Depth: 7.1mm
  • External Length / Height: 19.3mm
  • External Width: 23.7mm
  • Flammability Rating: UL
  • Forward Surge Current Ifsm Max: 200A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Output Current Max: 4A
  • RMS Input Voltage: 140V
  • Termination Type: Through Hole
