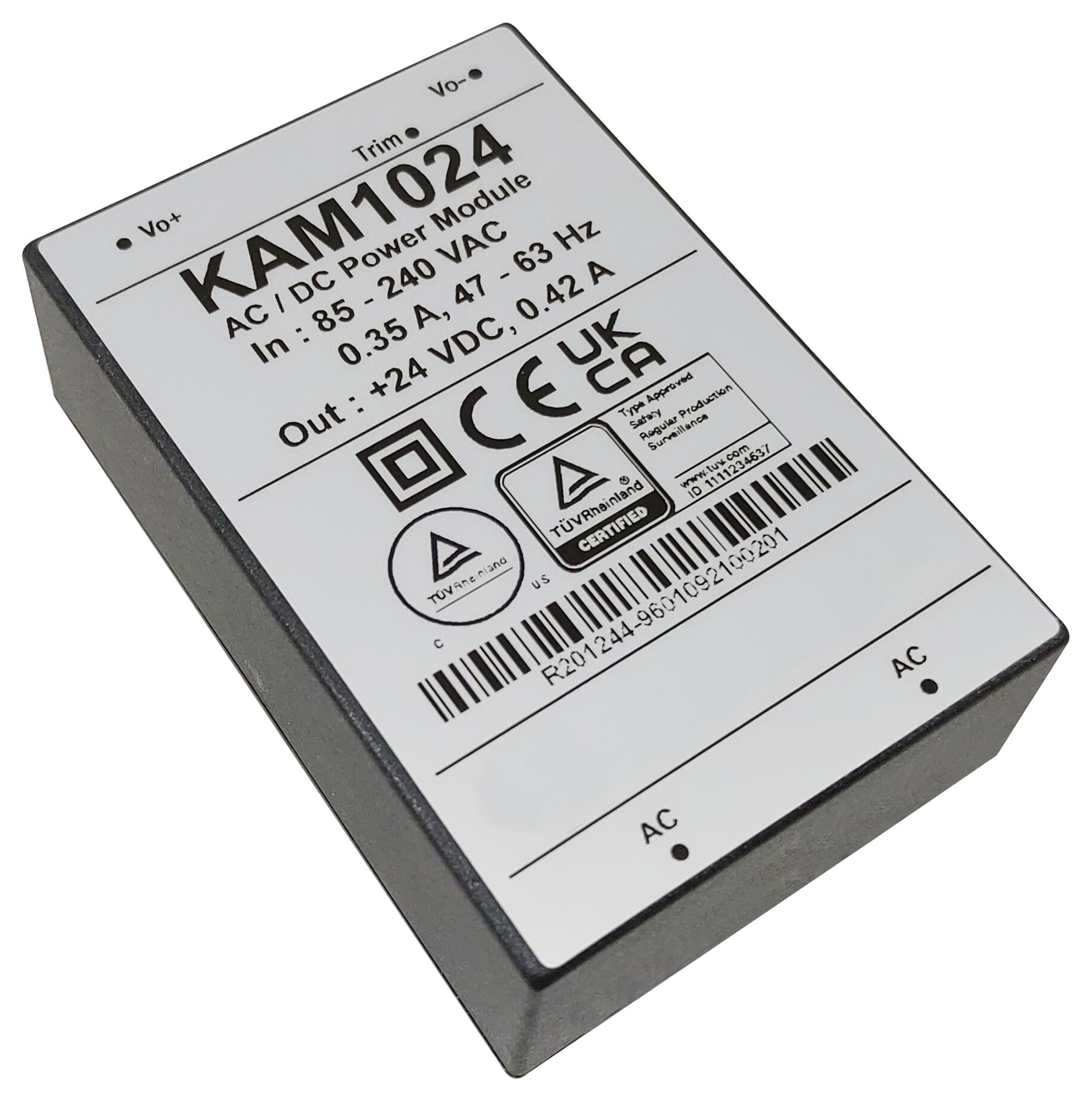

MULTICOMP - KAM1024 - AC/DC PCB Mount Power Supply (PSU), Encapsulated, ITE, 1 Output, 10 W, 24 V, 420 mA
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 420mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 85V AC to 265V AC
- Width: 50.8mm
- Height: 22.6mm
- Depth: 76.2mm
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Applications: General Purpose
- Approval Bodies: CE, TUV, UL
- Efficiency: 78%
- External Depth: 76.2mm
- External Length / Height: 22.6mm
- External Width: 50.8mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Input Frequency: 63Hz
- Input Voltage: 265VAC
- Input Voltage AC Max: 265V
- Input Voltage AC Min: 85V
- Isolation Voltage: 3000VAC
- Length: 76.2mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 71°C
- Operating Temperature Min: -20°C
- Output Current Max: 420mA
- Output Power: 10W
- Power Rating: 10W
- Power Supply Type: Switch Mode
- Storage Temperature Max: 100°C
- Storage Temperature Min: -40°C
- Supply Voltage: 230V
