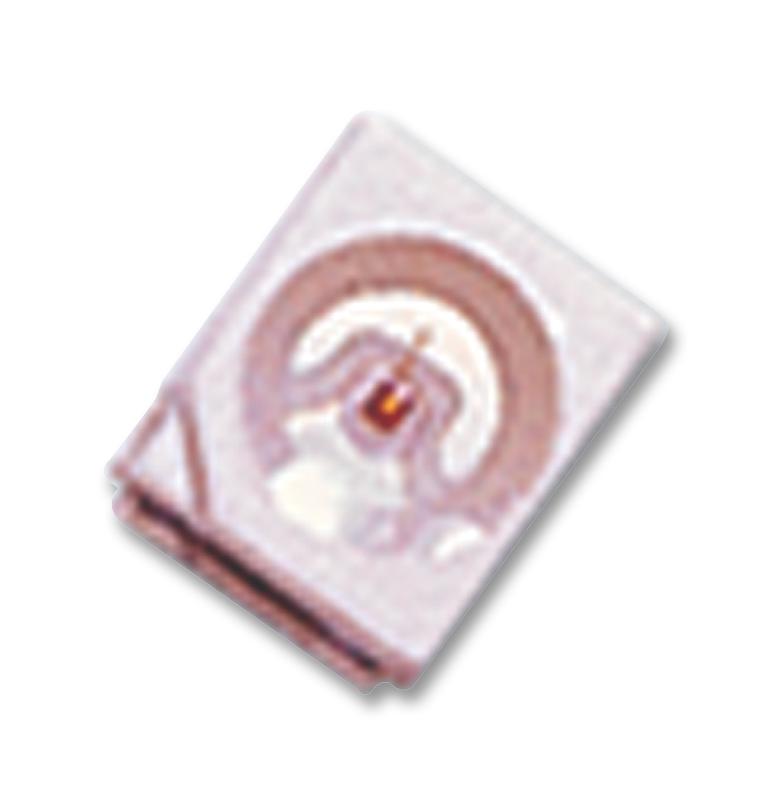

KA-3528SEC LED, SMD, PLCC2, Super Bright, Orange KINGBRIGHT

KINGBRIGHTUGS :KA-3528SEC Code de commande:8530270

Prix:
Prix ​​promotionnel€0,72

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1160 unité)

Documents et téléchargements

description

KINGBRIGHT - KA-3528SEC - LED, Orange, SMD, 3.5mm x 2.8mm, 20 mA, 2.1 V, 601 nm

  • LED Colour: Orange
  • LED Mounting: SMD
  • LED Case Size: 3.5mm x 2.8mm
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 601nm
  • Luminous Intensity: 350mcd
  • Viewing Angle: 120°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: 2.2mm
  • Dominant Wavelength: 601nm
  • External Depth: 2.8mm
  • External Length / Height: 1.9mm
  • External Width: 3.5mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • LED / Lamp Size: 2.4mm
  • LED Type: Standard
  • Lens Colour: Water clear
  • Luminous Intensity @ If Min: 200mcd
  • Luminous Intensity Typ: 350mcd
  • Material: InGaAIP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Peak Wavelength: 610nm
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2V
