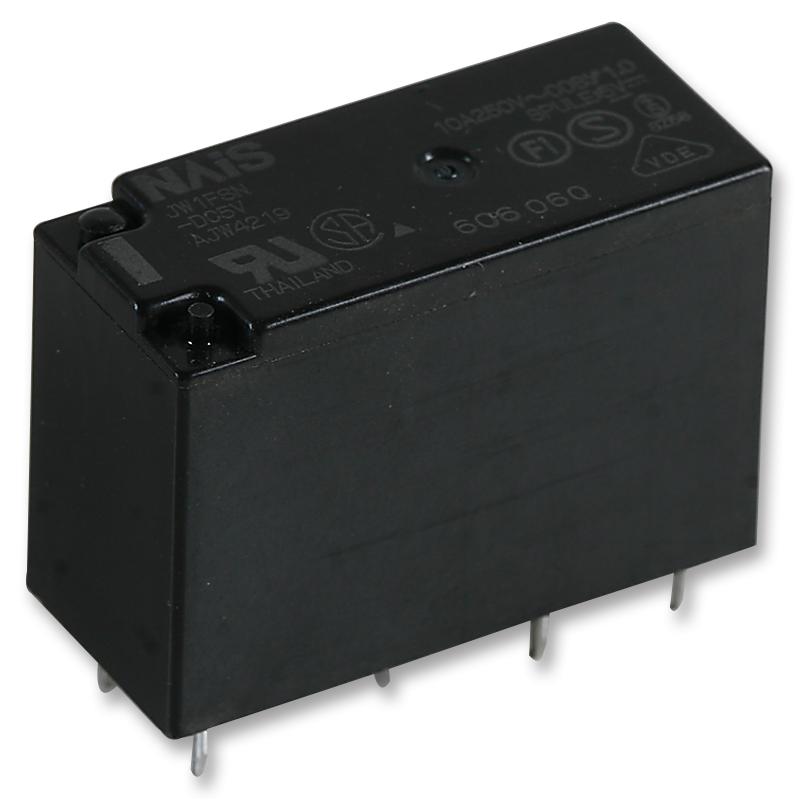

JW1FSN-DC5V Relay, SPDT, 277VAC, 30Vdc, 5A Panasonic

PANASONIC - JW1FSN-DC5V - General Purpose Relay, JW Series, Power, Non Latching, SPDT, 5 VDC, 10 A

• Contact Configuration: SPDT
• Coil Voltage: 5VDC
• Contact Current: 10A
• Product Range: JW Series
• Relay Mounting: Through Hole
• Coil Type: Non Latching
• Contact Voltage VAC: 277VAC
• Relay Terminals: Solder
• Contact Voltage VDC: 30VDC
• Contact Material: Silver Nickel
• Coil Resistance: 47ohm
• SVHC: No SVHC (07-Jul-2017)
• Approvals & Standards: CSA, UL, VDE
• Coil Current: 106mA
• Coil Voltage VDC Nom: 5V
• Contact Current AC Max: 10A
• Contact Current DC Max: 10A
• Contact Current Max: 10A
• Contact Resistance: 100mohm
• Contact Voltage AC Max: 250V
• Contact Voltage AC Nom: 250V
• Contact Voltage DC Max: 30V
• Contact Voltage DC Nom: 30V
• DC Coil Power: 530mW
• Dielectric Strength VDC: 1000V
• External Depth: 12.8mm
• External Height: 20mm
• External Width: 28.6mm
• IP / NEMA Rating: IP67
• Insulation Resistance: 1000Mohm
• No. of Mechanical Operations: 106
• Nom Operating Power: 530mW
• Operating Temperature Max: 100°C
• Operating Temperature Min: -40°C
• Relay Type: Power
• Release Time: 5ms
• Weight: 15g
