JE150429981 Connector, Micro D, Plug, Ribbon, 20WAY 3M

3MUGS :JE150429981 Code de commande:9292632

Prix:
Prix ​​promotionnel€15,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (175 unité)

Documents et téléchargements

description

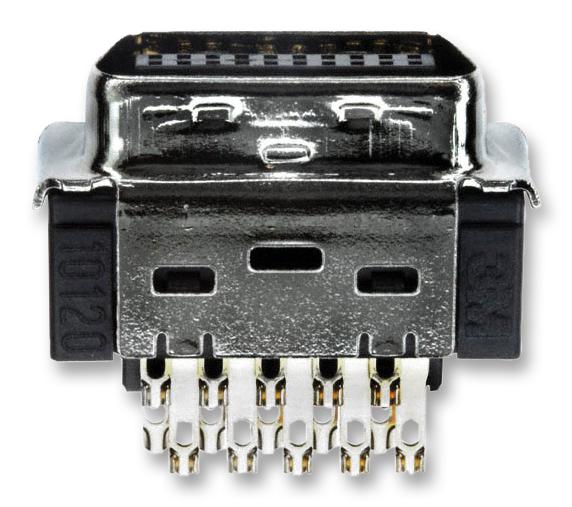

3M - JE150429981 - D Sub Connector, Micro D, Plug, 101, 20 Contacts, Solder Cup

  • No. of Contacts: 20Contacts
  • Gender: Plug
  • Product Range: 101 Series
  • Contact Termination Type: Solder Cup
  • Connector Mounting: Cable Mount
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: Cable
  • Connector Type: Micro D Ribbon
  • Contact Termination: Solder
  • Current Rating: 1A
  • D Sub Connector Type: Micro D
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 500Mohm
  • Material: Steel
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Pitch Spacing: 1.27mm
  • Terminal Plating: Gold
  • Termination Method: Solder
  • Withstand Voltage: 500V
