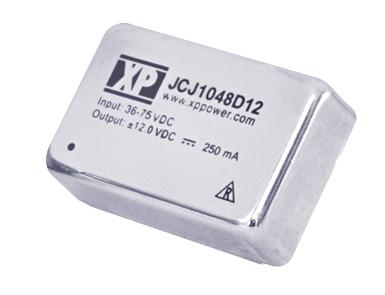

XP POWER - JCJ1012S3V3 - Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 10 W, 1 Output, 3.3 V, 3 A
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JCJ Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.32mm
- Height: 10.16mm
- Depth: 31.75mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 84%
- Isolation Voltage: 1.5kV
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 85mV
