IZPR1S422 Switch, Latching, Blk, Solder Apem

APEMUGS :IZPR1S422 Code de commande:1882248

Prix:
Prix ​​promotionnel€27,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (33 unité)

Documents et téléchargements

description

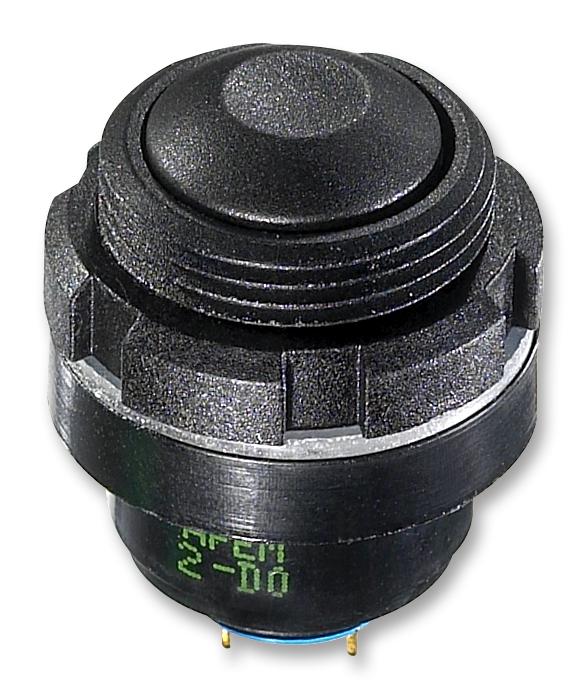

APEM - IZPR1S422 - Industrial Pushbutton Switch, IZ, 16 mm, SPST, Off-On, Flat, Black

  • Switch Operation: Off-On
  • Contact Configuration: SPST
  • Contact Voltage AC Nom: -
  • Contact Voltage DC Nom: 24V
  • Contact Current Max: 100mA
  • Switch Terminals: Solder Lug
  • Product Range: IZ Series
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Dome
  • Actuator / Cap Colour: Black
  • Contact Current DC Max: 100mA
  • Contact Resistance: 100mohm
  • Contact Voltage VDC: 24V
  • Dielectric Strength VDC: 1500V
  • IP Rating: IP67
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 1Gohm
  • No. of Electrical Operations: 200000
  • No. of Mechanical Operations: 200000
  • Operating Force: 5N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Panel Cutout Diameter: 16mm
  • Pushbutton Actuator Style: Flat
  • Pushbutton Switch Type: Industrial
  • Switch Mounting: Panel
  • Travel: 2.5mm
