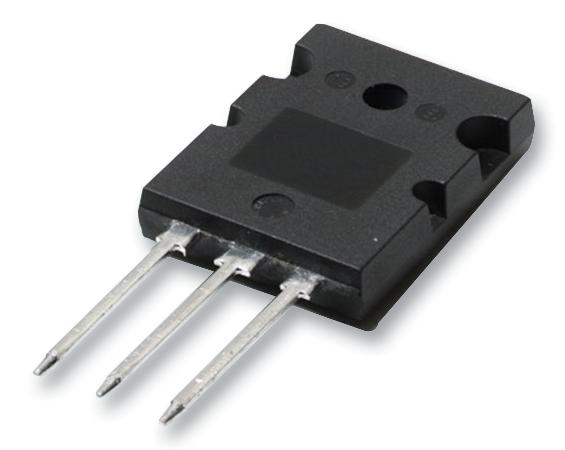

IXFK64N50P MOSFET, N, TO-264 IXYS Semiconductor

IXYS SEMICONDUCTORUGS :IXFK64N50P Code de commande:1427314

Prix:
Prix ​​promotionnel€24,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (411 unité)

Documents et téléchargements

description

IXYS SEMICONDUCTOR - IXFK64N50P - Power MOSFET, PolarFET, N Channel, 500 V, 64 A, 0.085 ohm, TO-264, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 64A
  • Drain Source Voltage Vds: 500V
  • On Resistance Rds(on): 0.085ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 5.5V
  • Power Dissipation Pd: 830W
  • Transistor Case Style: TO-264
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (12-Jan-2017)
  • Capacitance Ciss Typ: 8700pF
  • Current Id Max: 64A
  • Junction to Case Thermal Resistance A: 0.15°C/W
  • N-channel Gate Charge: 150nC
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Max: 200ns
  • Termination Type: Through Hole
  • Voltage Vds Typ: 500V
  • Voltage Vgs Max: 30V
  • Voltage Vgs Rds on Measurement: 10V
