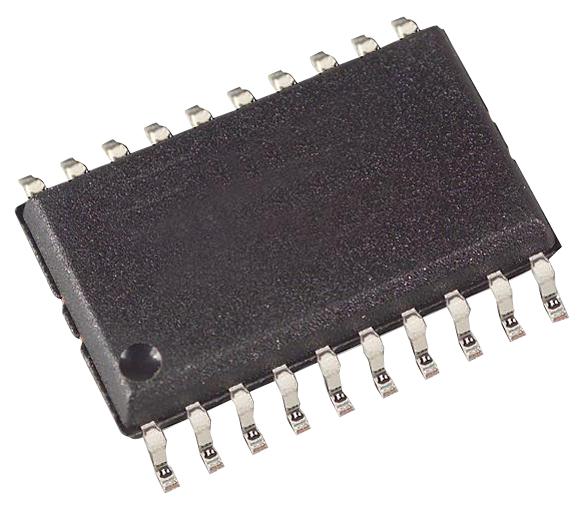

INFINEON - ITS716GFUMA1 - Power Load Switch, SIPMOS Technology, High Side, 4 Outputs, 40V, 6.5A, SOIC-20
- Power Load Switch Type: High Side
- Input Voltage: 40V
- Current Limit: 6.5A
- On State Resistance: 0.11ohm
- Distribution Switch Case Style: SOIC
- No. of Pins: 20Pins
- Thermal Protection: Yes
- On / Enable Input Polarity: -
- No. of Outputs: 4Outputs
- Operating Temperature Min: -30°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- IC Generic Number: 716
- Inductance Max: 21mH
- Input Voltage Max: 16V
- Internal Switch: No
- Junction Temperature Tj Max: 150°C
- Load Current Max: 6.5A
- On Resistance Rds(on): 0.035ohm
- Operating Temperature Range: -30°C to +85°C
- Operating Voltage Max: 43V
- Output Current Max: 5.3A
- Power Dissipation Pd: 3.6W
- Supply Voltage Min: 5.5V
- Termination Type: Surface Mount Device
- Voltage In Max: 16V
- Voltage In Min: -10V
