ISP452HUMA1 Ic, Smart High Side Pwr SW, SOT223-4 INFINEON

INFINEONUGS :ISP452HUMA1 Code de commande:2215484

Prix:
Prix ​​promotionnel€4,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13855 unité)

Documenten en downloads

description

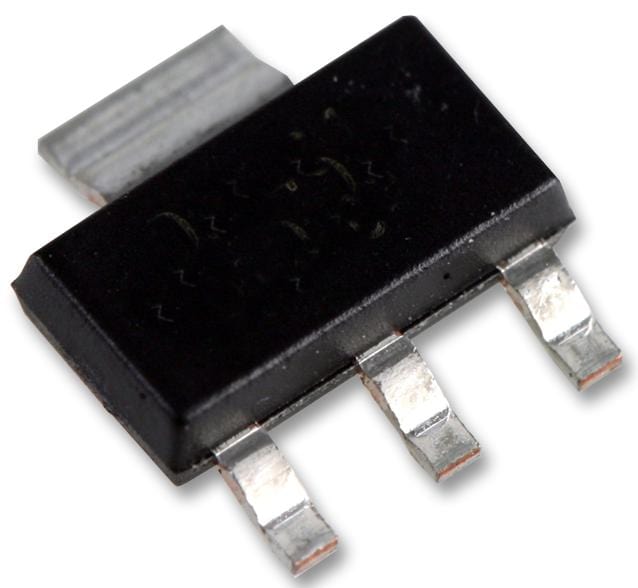

INFINEON - ISP452HUMA1 - Power Load Switch, SIPMOS Technology, High Side, 1 Output, 1.5A, SOT-223-4

  • Power Load Switch Type: High Side
  • Input Voltage: 40V
  • Current Limit: 1.5A
  • On State Resistance: 0.2ohm
  • Distribution Switch Case Style: SOT-223
  • No. of Pins: 4Pins
  • Thermal Protection: Yes
  • On / Enable Input Polarity: Active High
  • No. of Outputs: 1Outputs
  • Operating Temperature Min: -30°C
  • Operating Temperature Max: 85°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Device Type: High Side
  • Driver Case Style: SOT-223
  • Input Delay: 60µs
  • Module Configuration: N Channel
  • Operating Temperature Range: -30°C to +85°C
  • Output Delay: 60µs
  • Output Resistance: 0.16ohm
  • Peak Output Current: 1.5A
  • Supply Voltage Max: 34V
  • Supply Voltage Min: 5V
  • Supply Voltage Range: 5V to 34V
