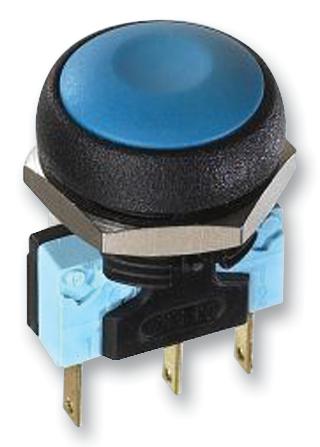

APEM - IRR7Z222 - Industrial Pushbutton Switch, IR, 16.2 mm, SPST-NO, SPST-NC, Momentary, Round, Black
- Switch Operation: Momentary
- Contact Configuration: SPST-NO, SPST-NC
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 5A
- Switch Terminals: Quick Connect, Solder
- Product Range: IR Series
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Black
- Contact Current AC Max: 5A
- Contact Resistance: 100mohm
- Contact Voltage VAC: 250V
- Dielectric Strength VDC: 750V
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1Gohm
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 1000000
- Operating Force Max: 5N
- Operating Force Min: 2N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 16.2mm
- Panel Thickness: 3mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
- Travel: 1.7mm
