IRR3S422LOG Switch, NO, Round, GRN LED, IP67 Apem

APEMUGS :IRR3S422LOG Code de commande:1714154

Prix:
Prix ​​promotionnel€31,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (59 unité)

Documents et téléchargements

description

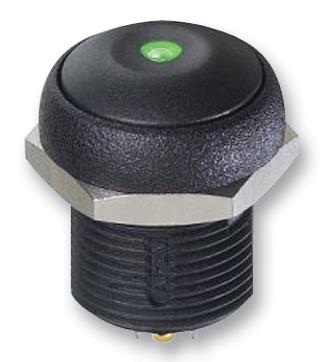

APEM - IRR3S422LOG - Industrial Pushbutton Switch, IR, 16.2 mm, SPST-NO, Momentary, Round, Black

  • Product Range: IR Series
  • Contact Configuration: SPST-NO
  • Switch Operation: Momentary
  • Contact Current Max: 200mA
  • Contact Voltage AC Nom: 250V
  • Illumination Colour: Green
  • Contact Voltage DC Nom: 48V
  • Switch Terminals: Solder Lug
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Round
  • Actuator / Cap Colour: Black
  • Bush Diameter: 16mm
  • Contact Current AC Max: 200mA
  • Contact Current DC Max: 200mA
  • Contact Resistance: 100mohm
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 48V
  • Dielectric Strength VDC: 1500V
  • IP Rating: IP67
  • Insulation Resistance: 1Gohm
  • No. of Electrical Operations: 500000
  • No. of Mechanical Operations: 1000000
  • Operating Force Max: 5N
  • Operating Force Min: 2N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Panel Cutout Diameter: 16.2mm
  • Panel Thickness: 8mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Industrial
  • Switch Mounting: Panel
  • Travel: 1.7mm
