description

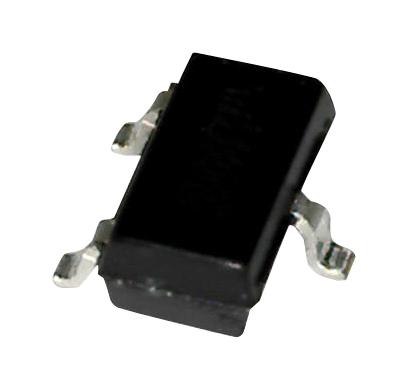

INFINEON - IRLML5203TRPBF - Power MOSFET, P Channel, 30 V, 3 A, 0.098 ohm, SOT-23, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -3A
- Drain Source Voltage Vds: -30V
- On Resistance Rds(on): 0.098ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -2.5V
- Power Dissipation Pd: 1.25W
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: -3A
- Current Temperature: 25°C
- Device Marking: IRLML5203
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: -24A
- SMD Marking: H
- Tape Width: 8mm
- Voltage Vds Typ: -30V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Max: -2.5V
