IRFD220PBF MOSFET, N, Dil Vishay

VISHAYUGS :IRFD220PBF Code de commande:9102388

Prix:
Prix ​​promotionnel€2,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (869 unité)

Documents et téléchargements

description

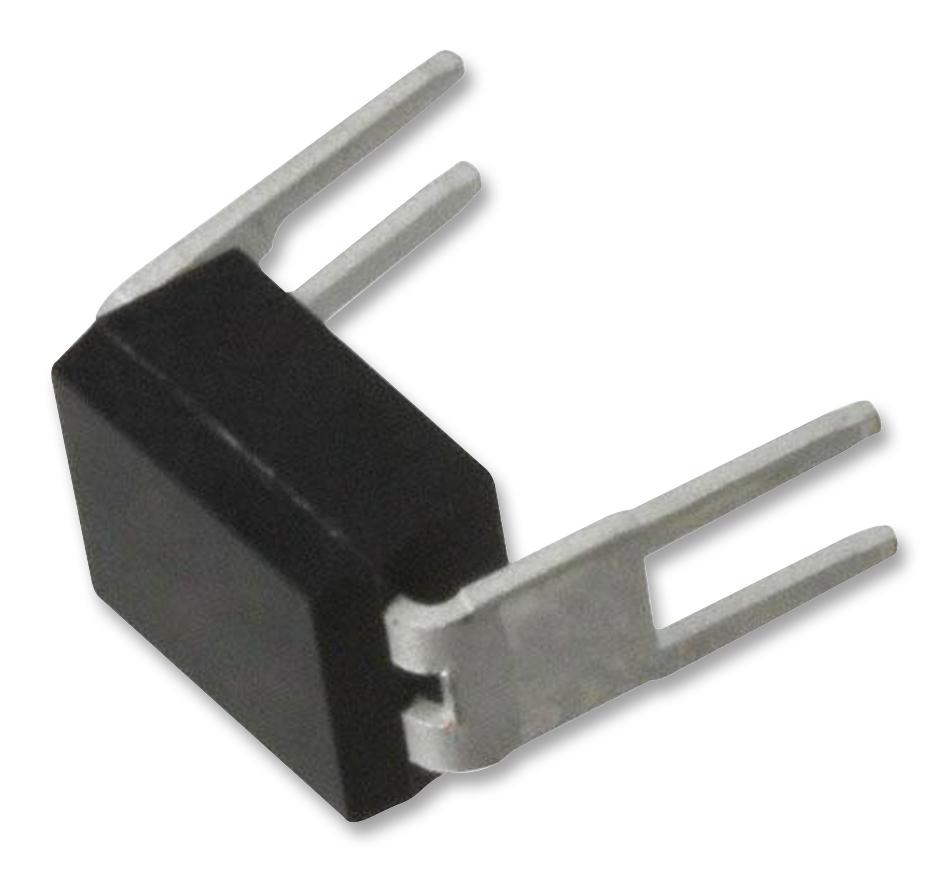

VISHAY - IRFD220PBF - Power MOSFET, N Channel, 200 V, 1.3 A, 0.8 ohm, DIP, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 1.3A
  • Drain Source Voltage Vds: 200V
  • On Resistance Rds(on): 0.8ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 4V
  • Power Dissipation Pd: 1W
  • Transistor Case Style: DIP
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Current Id Max: 800mA
  • Current Temperature: 25°C
  • Full Power Rating Temperature: 25°C
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pulse Current Idm: 6.4A
  • Voltage Vds: 200V
  • Voltage Vds Typ: 200V
  • Voltage Vgs Max: 20V
  • Voltage Vgs Rds on Measurement: 10V
