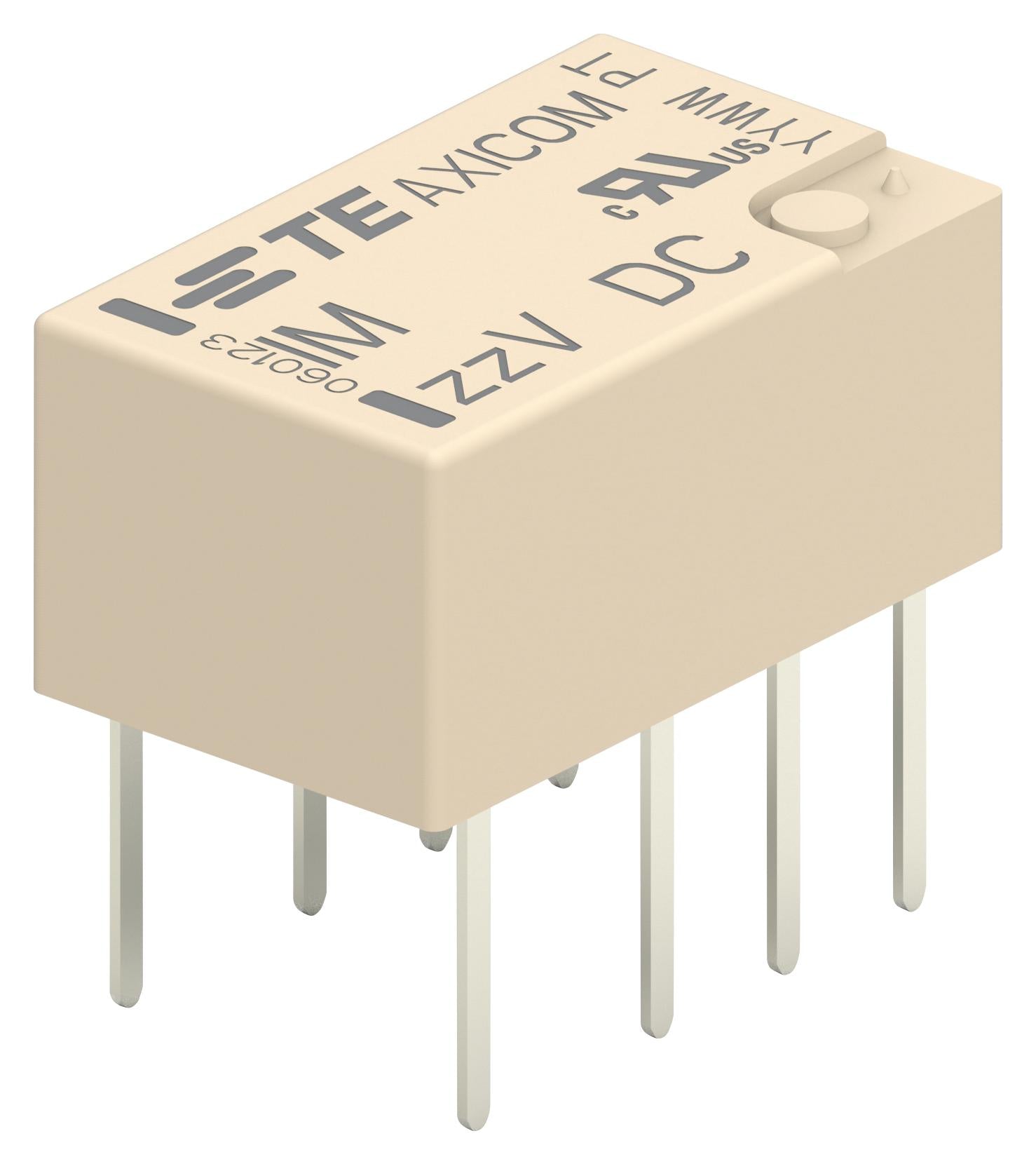

TE CONNECTIVITY - 3-1462037-0 - Signal Relay, 24 VDC, DPDT, 2 A, IM, Through Hole, Non Latching
- Coil Voltage: 24VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: IM Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 220V
- Contact Material: Palladium Ruthenium
- Coil Resistance: 2.88kohm
- SVHC: No SVHC (27-Jun-2018)
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 2A
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Current Rating: 2A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 11.4V
- Contact Voltage DC Nom: 220V
- DC Coil Power: 140mW
- External Depth: 5.65mm
- External Height: 10mm
- External Length / Height: 10mm
- External Width: 6mm
- Nom Operating Power: 200mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 1ms
- Power Rating: 140mW
- Relay Type: General Purpose
- Release Time: 1ms
- Switch Current Max: 2A
- Switching Current Max: 2A
- Switching Power Max: 60W
