description

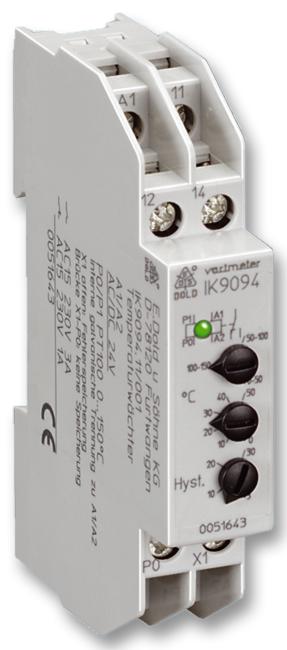

DOLD - IK 9094.11 AC/DC24V 0 - 150°C - Temperature Monitoring Relay, IK 9094 Series, 24 Vac/dc, SPDT Relay
- Thermocouple Type: -
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Temperature Accuracy ±: -
- Output Voltage Max: -
- Output Voltage Min: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE, EN, IEC, VDE
- Coil Type: AC
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Configuration: SPNC
- Contact Current AC Max: 3A
- Contact Current Max: 3A
- Contact Voltage AC Max: 230V
- Contact Voltage AC Nom: 230V
- Current Rating: 4A
- External Depth: 59mm
- External Length / Height: 90mm
- External Width: 17.5mm
- Height: 90mm
- Nom Operating Power: 1VA
- Relay Mounting: DIN Rail
- Relay Type: General Purpose
- Type: 0051642
