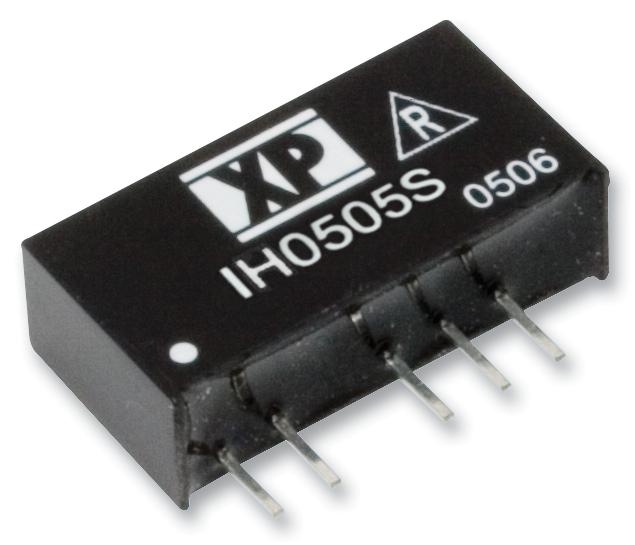

IH0515S-H Converter, DC/DC, 2W, 15V XP Power

XP POWERUGS :IH0515S-H Code de commande:1436146

Prix:
Prix ​​promotionnel€24,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (18 unité)

Documents et téléchargements

description

XP POWER - IH0515S-H - Isolated Through Hole DC/DC Converter, ITE, 1:1, 2 W, 2 Output, 15 V, 66 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 2W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 66mA
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 66mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: IH Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 7.62mm
  • Height: 10.16mm
  • Depth: 19.5mm
  • SVHC: No SVHC (15-Jan-2018)
  • Efficiency: 80%
  • External Depth: 10.16mm
  • External Length / Height: 19.81mm
  • External Width: 7.62mm
  • Input Voltage: 5V
  • Isolation Voltage: 3kV
  • No. of Outputs: 2Outputs
  • Off Load Current: 30mA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Current - Max: 66mA
  • Output Ripple Voltage pk-pk: 60mV
  • Output Voltage +: 15V
  • Output Voltage -: 15V
  • Output Voltage Max: 15V
  • Output Voltage Min: -15V
  • Power Rating: 2W
  • Supply Voltage: 5V
