Documents et téléchargements
description

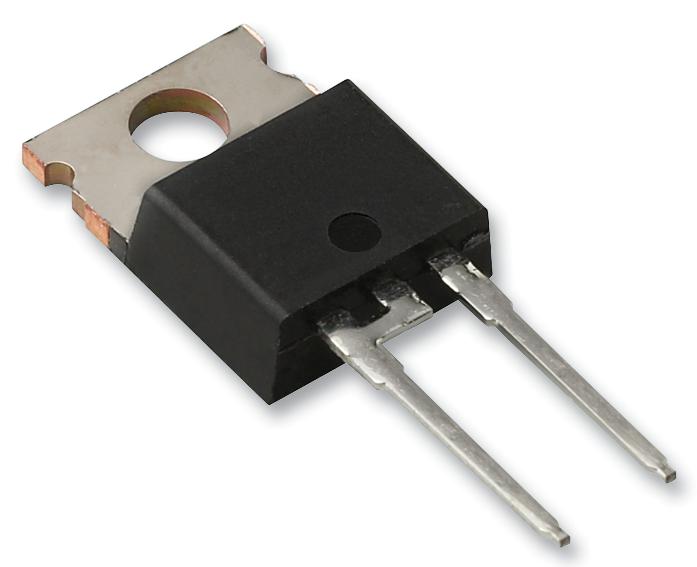

INFINEON - IDH02G120C5XKSA1 - Silicon Carbide Schottky Diode, thinQ!™, Single, 1.2 kV, 11.8 A, 14 nC, TO-220
- Product Range: -
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 1.2kV
- Continuous Forward Current If: 11.8A
- Total Capacitive Charge Qc: 14nC
- Diode Case Style: TO-220
- No. of Pins: 2 Pin
- Junction Temperature Tj Max: 175°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Forward Current If(AV): 11.8A
- Forward Surge Current Ifsm Max: 37A
- Forward Voltage VF Max: 1.65V
- Operating Temperature Max: 175°C
- Semiconductor Technology: SiC
