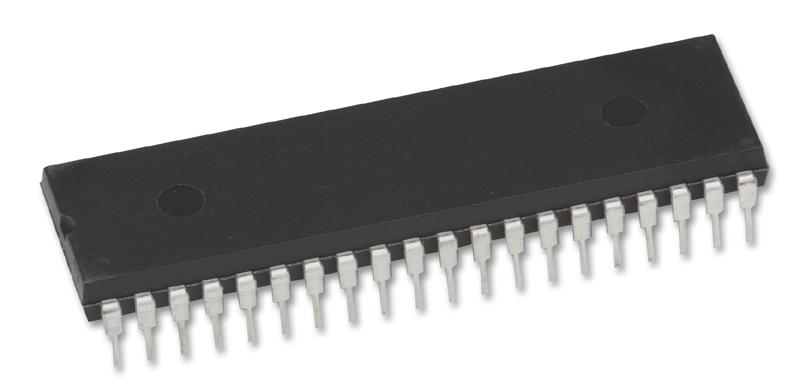

MAXIM INTEGRATED / ANALOG DEVICES - ICL7109CPL+ - Analogue to Digital Converter, 12 bit, 30 SPS, Differential, Parallel, Dual (+/-), -5 V
- Resolution (Bits): 12bit
- Sampling Rate: 30SPS
- Input Channel Type: Differential
- Data Interface: Parallel
- Supply Voltage Type: Dual (+/-)
- Supply Voltage Min: -5V
- Supply Voltage Max: 5V
- ADC / DAC Case Style: DIP
- No. of Pins: 40Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- A/D / D/A Features: CMOS, Internal Reference, Microprocessor Compatible, Parallel O/P
- Base Number: 7109
- Conversion Time: 3333µs
- IC Case Style: DIP
- IC Temperature Range: Commercial
- Linearity Error: 2%
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- Logic Function Number: 7109
- No. of Bits: 12bit
- No. of Channels: 1Channels
- Operating Temperature Range: 0°C to +70°C
- Power Dissipation Ptot Max: 22.5mW
- Supply Current: 700µA
- Termination Type: Through Hole
