HX 10-NP Current Transducer Lem

LEMUGS :HX 10-NP Code de commande:1617426

Prix:
Prix ​​promotionnel€22,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (88 unité)

Documents et téléchargements

description

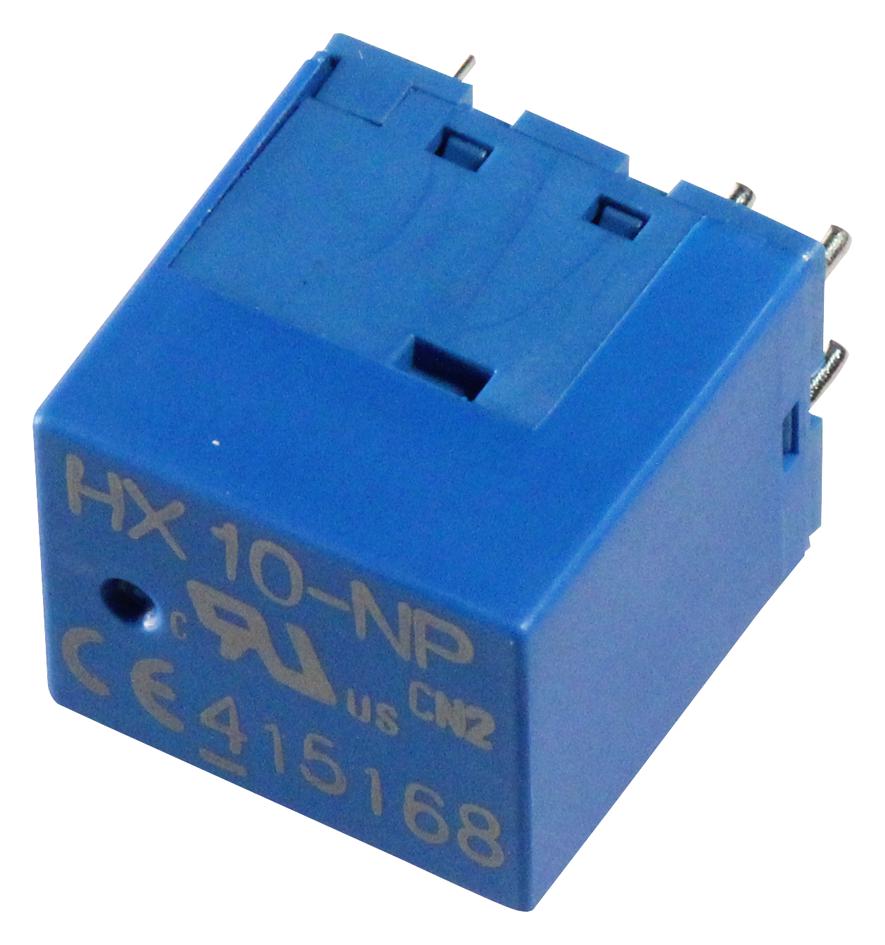

LEM - HX 10-NP - Current Transducer, HX Series, PCB, 10A, -30A to 30A, 1 %, Voltage Output, 15 Vdc

  • Sensor Output: Voltage
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 15V
  • Current Measuring Range DC: -30A to 30A
  • Current Measuring Range AC: -30A to 30A
  • Response Time: 3µs
  • Accuracy %: 1%
  • Product Range: HX 05..15-NP Series
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: 1%
  • Bandwidth: 50kHz
  • Current Consumption: 20mA
  • Current Range AC: DC, AC, Pulsed, Mixed
  • Current Range DC: DC, AC, Pulsed, Mixed
  • External Depth: 15.4mm
  • External Length / Height: 20mm
  • External Width: 19mm
  • Flammability Rating: UL 94-V0
  • Output Voltage: 4V
  • Output Voltage Min: -4V
  • Supply Voltage Range DC: ± 12V to ± 15V
  • Transducer Function: Current

Frais de port prévus
