description

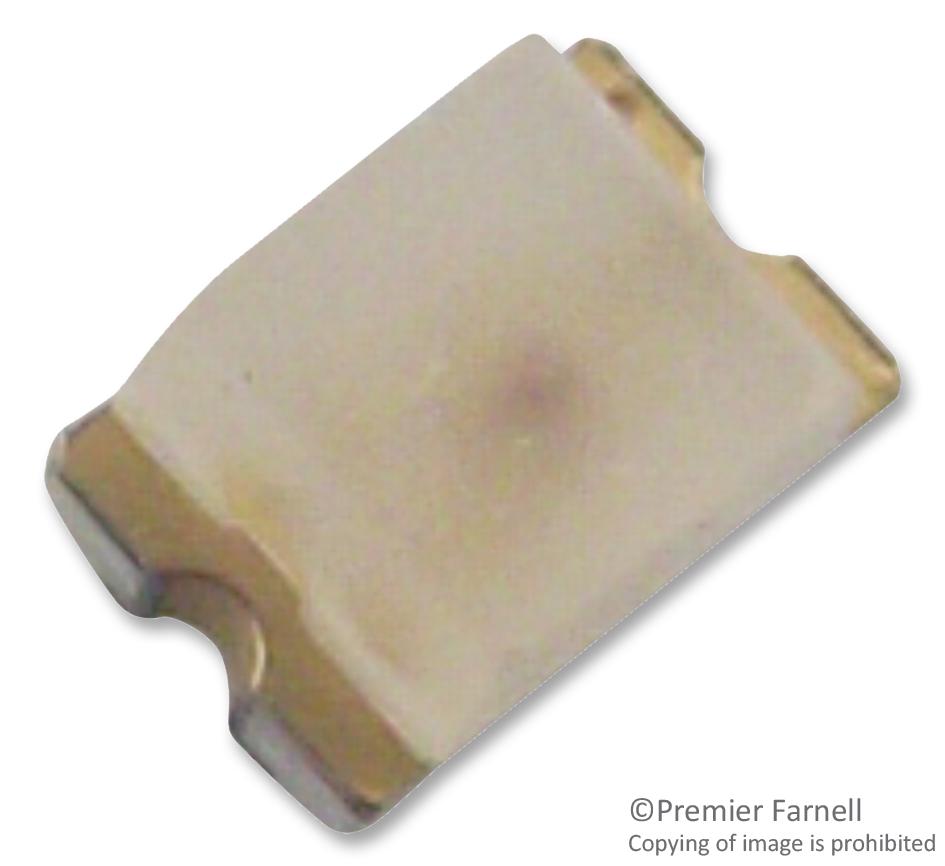

BROADCOM - HSMG-C150 - LED, Green, SMD, 1.6mm x 3.2mm, 20 mA, 2.2 V, 572 nm
- LED Colour: Green
- LED Mounting: SMD
- LED Case Size: 1.6mm x 3.2mm
- Forward Current If: 20mA
- Forward Voltage: 2.2V
- Wavelength Typ: 572nm
- Luminous Intensity: 15mcd
- Viewing Angle: 170°
- Lens Shape: Rectangular
- Product Range: SMD Green LED
- Automotive Qualification Standard: -
- MSL: MSL 2A - 4 weeks
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: 1.6mm x 3.2mm
- Dominant Wavelength: 572nm
- External Depth: 1.1mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.6V
- LED Type: Standard
- Light Output Orientation: Top Emitting
- Luminous Intensity @ If Min: 4.5mcd
- Luminous Intensity Typ: 15mcd
- Material: GaP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +85°C
- Opto Mounting Orientation: Top
- PIV Max: 5V
- Peak Wavelength: 570nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 2.2V
- Voltage Vf Typ: 2.2V
