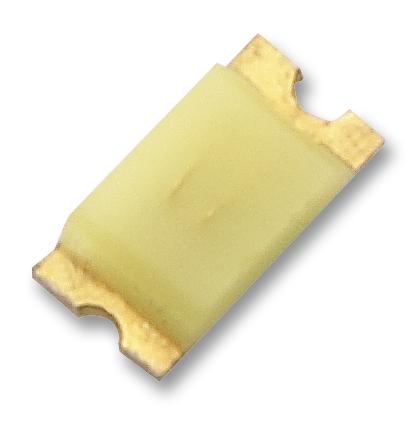

HSME-C150 LED, SMD, 1206, Top, Yellow/Green BROADCOM

BROADCOMUGS :HSME-C150 Code de commande:1219737

Prix:
Prix ​​promotionnel€1,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3894 unité)

Documents et téléchargements

description

BROADCOM - HSME-C150 - LED, Green, SMD, 1206 (3216 Metric), 20 mA, 2.1 V, 570 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 1206 (3216 Metric)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 570nm
  • Luminous Intensity: 50mcd
  • Viewing Angle: 170°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2A - 4 weeks
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: 1.6mm x 2mm
  • Dominant Wavelength: 572nm
  • External Depth: 1.6mm
  • External Length / Height: 1.1mm
  • External Width: 3.2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 2mm x 1.6mm
  • LED Type: Standard
  • Luminous Intensity @ If Min: 18mcd
  • Luminous Intensity Typ: 50mcd
  • Mounting Orientation: Top
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +85°C
  • Peak Forward Current: 20mA
  • Peak Wavelength: 570nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2.1V
