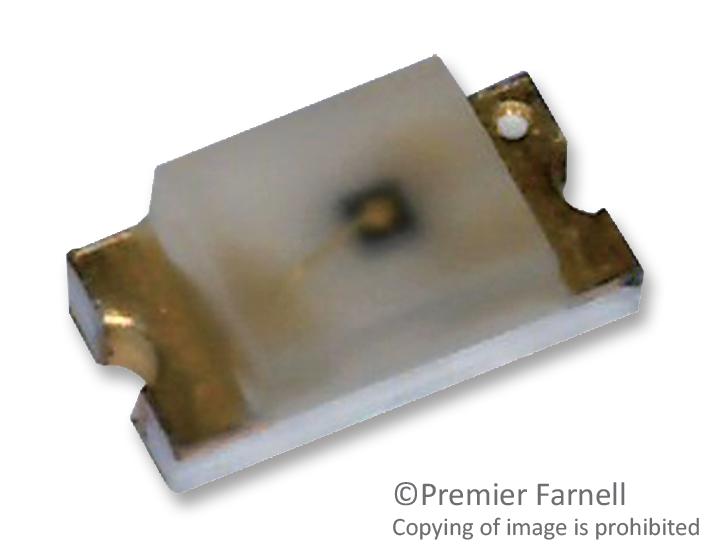

BROADCOM - HSMA-C191 - LED, Amber, SMD, 0.8mm x 1mm, 20 mA, 1.9 V, 592 nm
- LED Colour: Amber
- LED Mounting: SMD
- LED Case Size: 0.8mm x 1mm
- Forward Current If: 20mA
- Forward Voltage: 1.9V
- Wavelength Typ: 592nm
- Luminous Intensity: 90mcd
- Viewing Angle: 170°
- Lens Shape: Rectangular
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2A - 4 weeks
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: 0.8mm x 1mm
- Dominant Wavelength: 592nm
- External Depth: 0.6mm
- External Length / Height: 1.6mm
- External Width: 0.8mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.4V
- LED Type: Standard
- Light Output Orientation: Top Emitting
- Luminous Intensity @ If Min: 28.5mcd
- Luminous Intensity Typ: 90mcd
- Material: AllnGaP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +85°C
- Opto Mounting Orientation: Top
- PIV Max: 5V
- Peak Wavelength: 595nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 1.9V
- Voltage Vf Typ: 1.9V
