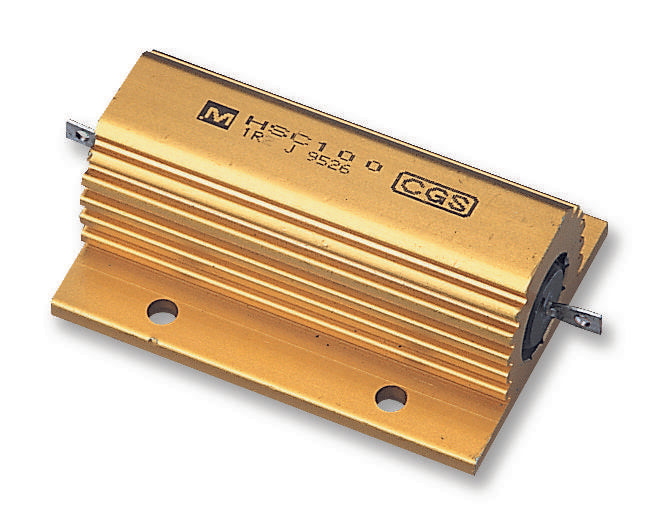

HSC10010RJ Resistor, 100W 5% 10R CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :HSC10010RJ Code de commande:1174288

Prix:
Prix ​​promotionnel€21,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (64 unité)

Documents et téléchargements

description

CGS - TE CONNECTIVITY - HSC10010RJ - Resistor, Solder Lug, 10 ohm, HS Series, 100 W, ± 5%, Solder Lug, 1.9 kV

  • Resistance: 10ohm
  • Product Range: HS Series
  • Power Rating: 100W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Solder Lug
  • Voltage Rating: 1.9kV
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 50ppm/°C
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 26mm
  • External Length / Height: 65.5mm
  • External Width: 47.5mm
  • Fixing Centres LxW: 35x37
  • Full Power Rating Temperature: 20°C
  • Insulation Resistance: 10000mohm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 250°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +250°C
  • Resistor Mounting: Panel
  • Temperature Coeff. +: 50ppm/°C
  • Temperature Coeff. -: 50ppm/°C
  • Temperature Rise: 1.1°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating VAC: 1900V
