HRM-S DC12V Relay, SPDT, 250VAC, 30Vdc, 10A multicomp Pro

MULTICOMP PROUGS :HRM-S DC12V Code de commande:9480048

Prix:
Prix ​​promotionnel€5,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4077 unité)

Documents et téléchargements

description

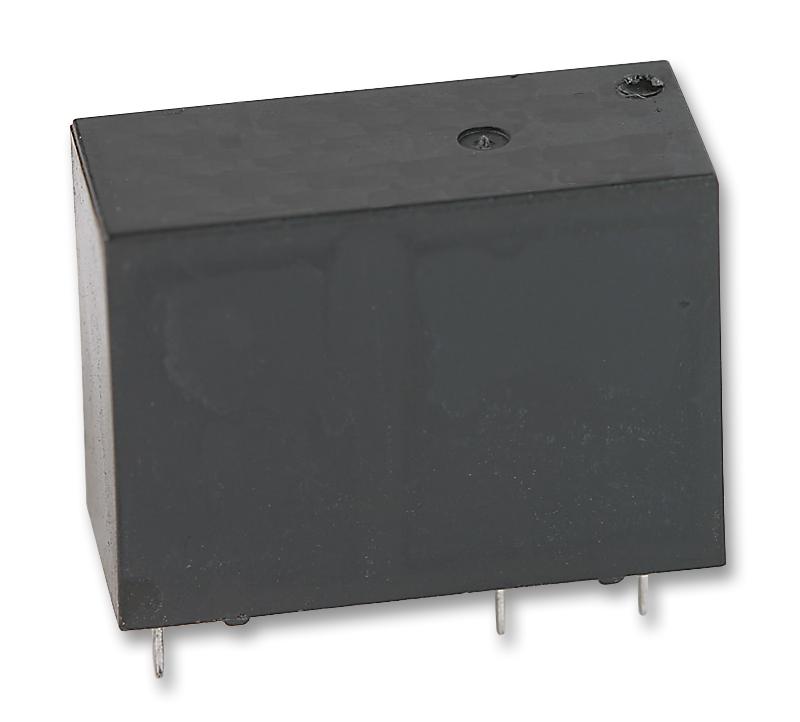

MULTICOMP PRO - HRM-S DC12V - General Purpose Relay, HRM Series, Power, SPDT, 12 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 10A
  • Product Range: HRM Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 200ohm
  • Approval Bodies: CSA, UL
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 720mW
  • External Depth: 12.6mm
  • External Height: 20.8mm
  • External Length / Height: 20.8mm
  • External Width: 29mm
  • Nom Operating Power: 720mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 8ms
